6082-T6 Aluminum Truss Folding Box Truss Heavy Duty Foldable Truss 520 x 470mm

Place of Origin Guangzhou,China
Brand Name LEDIKA
Certification ISO9001
Model Number SQS/SQB/TR
Minimum Order Quantity 1set
Price USD100-300/M
Packaging Details Carton with film / Flight case / Wooden box
Delivery Time 15-20 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 50,000M per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum 6082-T6 Truss Shape Square, Triangle
Specialty Hanging LED Screen, Speaker And Background Cloth Max Span 20-36m
Truss Length 0.5m-4m Loading Port Guangzhou, China
MOQ 1set Color Silver, Black
Highlight

foldable truss

,

exhibit truss

Leave a Message
Product Description

520x470mm 6082-T6 Aluminum Truss Folding Box Truss Heavy Duty Folding Truss 19.8 x 39.4 Spigot



Product Description





The material of Folding Truss is 6082-T6 aluminium alloy. It is a highly versatile and cost effective trussing system.




Product's Material


Material 6082 Aluminum
Color Silver, Black, Red, Green or Customized
Standard ISO9001
Shape Square,Triangle



Specification



  • Type: Spigot
  • Shape: Triangle or Square
  • Color: Silver or customized
  • Certification: ISO9001
  • Length available: 0.5m—4m
  • Package: Carton



Truss Shape

Connection Type

Specification of Size/mm

Joint

Square

Spigot

600x1200

Ø 60mm Spigot

Triangle

Spigot

520x470

Ø 60mm Spigot

Triangle

Spigot

520x950

Ø 60mm Spigot





1) FT5247 Aluminum triangle folding truss

   Truss size : 520x470mm

   Material of folded part: A380

   Main tube : Diameter  Ø50mm, Thickness 4mm

   Joint :  Diameter  Ø60mm spigot

   Standpipe : Diameter  Ø30mm, Thickness 2mm

   The largest safety loading : 1179-2809kgs

   Max Span : 20m





2) FT5295 Aluminum triangle folding truss

   Truss size : 520x950mm

   Material of folded part: A380

   Main tube : Diameter  Ø50mm, Thickness 4mm

   Joint :  Diameter  Ø60mm spigot

   Standpipe : Diameter  Ø30mm, Thickness 2mm

   The largest safety loading : 1055-1898kgs

   Max Span : 36m





3) FT60120 Aluminum square folding truss

   Truss size : 600x1200mm

   Material of folded part: A380

   Main tube : Diameter  Ø50mm, Thickness 4mm

   Joint :  Diameter  Ø60mm spigot

   Standpipe : Diameter  Ø30mm, Thickness 2mm

   The largest safety loading : 1100-2800kgs

   Max Span : 20m



Features


• Portable folding truss system designed to enhance any mobile set up at any size venue
• Quick and easy set up and tear down with pre-labeled connections and quick release pins
• Enhances durability and corrosion resistance with aluminum construction
• Holds up to 1000-2800KG (evenly distributed) when fully assembled
• Designed to LEDIKA COMPANY
• Match any setup with selectable height options




Pictures

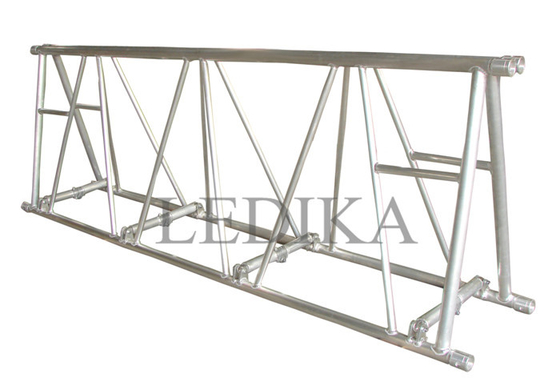

6082-T6 Aluminum Truss Folding Box Truss Heavy Duty Foldable Truss 520 x 470mm 0



6082-T6 Aluminum Truss Folding Box Truss Heavy Duty Foldable Truss 520 x 470mm 1



6082-T6 Aluminum Truss Folding Box Truss Heavy Duty Foldable Truss 520 x 470mm 2








Application



  • Performing Arts Stage Equipment
  • Exhibition Truss Equipment
  • Mechanical Stage Design
  • Entertainment Equipment Rental Services
  • Project Design and Installation





Product Advantages

1. Aluminium material-durable and absolutely environmental friendly.
2. Light weight-easy to carry around, store and transport.
3. High quality-strong loading capability.
4. Unique design-with perfect craftsmanship,owns technicians design for your special request.
5. Favorable price-with competitive price under the assurance of quality.




Other Information of Product

  • Warranty: 2 Years
  • Sample: Depends on the quantity of order.
  • Design: Any designs can be customized.



Type of Trading


Payment Terms T/T, L/C, Western Union
Payment 30% TT in davance, 70% balance should be against before shipment
Delivery 15-20 working days after receive your deposit
Loading Port Guangzhou / Shenzhen




FAQ



1. Q: Are you a dealer?

    A: No. We have our own factory that covers an area of 3,000 square meters.

2. Q: Can you make customized products?

    A: Absolutely. You just need to send us your requirement about the item or design.

3. Q: What does your factory do regarding quality control?

    A: Quality is our priority, we pay great attention to the quality from the beginning to the end.

        And we never sell low quality products for lower price.
