Heavy Folding Duty Triangular Aluminum Foldable Truss Spigot 520 * 950 Mm

  • Heavy Folding Duty Triangular Aluminum Foldable Truss Spigot 520 * 950 Mm
  • Heavy Folding Duty Triangular Aluminum Foldable Truss Spigot 520 * 950 Mm
  • Heavy Folding Duty Triangular Aluminum Foldable Truss Spigot 520 * 950 Mm
  • Heavy Folding Duty Triangular Aluminum Foldable Truss Spigot 520 * 950 Mm
Place of Origin China
Brand Name LEDIKA
Certification ISO
Model Number FT5295
Minimum Order Quantity 10pcs
Price negotiation
Packaging Details Carton packing
Delivery Time 15 days
Payment Terms T/T 30% deposit, 70% balance
Supply Ability 50pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Heavy Truss Size Of Tube 50*4mm
Size Of Truss 1-4m , 520 X 950 Mm Material Aluminum 6082-T6
Color Custmozied Connector Spigot
Storage Folding Range Outdoor/Big Event
Highlight

foldable truss

,

exhibit truss
Leave a Message
Product Description

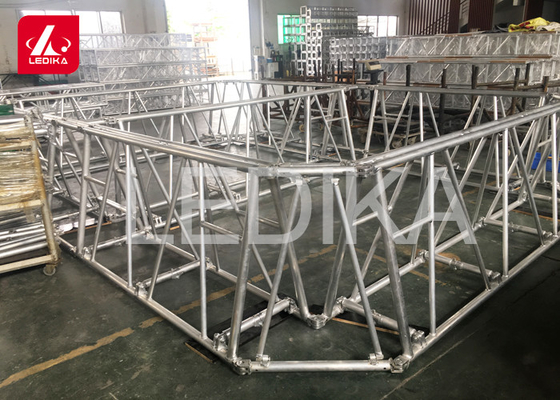

Heavy Folding Duty Triangular Aluminum 6082-T6 Trusses Spigot 520 * 950 mm



Heavy Folding Duty Triangular Aluminum Foldable Truss Spigot 520 * 950 Mm 0



Description:



The folding design scheme of adopting self-lock folding end and pattern of spigot bolt ensue smart installation and simiplicity, and fully avoid butt joint fault of the wrong trusses when the are desinged.Meanwhile ,we could use"+"type or thicker alloy aluminum tube to make such style according to your need.





Specifications:



FT5295 Allowable Loading
 6082-T6   50*4mm tube as main tube 30*2mm as brace tube
Span LOAD ALL Unitformly distributed load(UDL) Centre point load(CPL) DEFLECTION
( M ) ( ft ) ( KG ) ( KG ) ( KG ) ( mm )
4.0 13.1 2809.0 702.2 2756.2 4.0
5.0 16.4 2809.0 561.4 2319.8 6.0
6.0 19.7 2809.0 468.2 1932.8 8.0
7.0 23.0 2809.0 401.3 1657.2 10.0
8.0 26.2 2809.0 351.1 1342.0 20.0
9.0 29.5 2621.5 291.3 1313.0 31.0
10.0 32.8 2358.4 235.8 1181.0 40.0
11.0 36.0 2149.0 195.6 1073.6 50.0
12.0 39.3 1964.2 163.7 984.7 61.0
13.0 42.6 1819.0 139.9 909.0 74.0
14.0 45.9 1687.8 120.6 843.9 89.0
15.0 48.2 1570.8 104.7 787.6 103.0
16.0 52.5 1478.4 92.4 738.3 118.0
17.0 55.7 1391.3 81.8 695.2 136.0
18.0 59.0 1314.7 73.0 656.5 154.0
19.0 52.3 1237.3 65.1 622.2 171.0
20.0 65.6 1179.2 59.0 590.5 195.0





Advantages



1. 15 years perfessional stage truss big events experience since 2001.
2.  Projects case are cover to all over the world.
3.  LEDIKA Brand is famous in many countries and government tender brand.
4.  OEM and R&D support.
5.  Attend to prolight show every year.
6.  With material 6082 T6 guarantee certification.
7.  Have ISO certification.
8.  Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games, Shanghai Expo and World Youth Skiing Championships etc.
9.  Best quality aluminium truss and stage, strict working production process.
10. Life-time after sales service.





Packing Photo



Heavy Folding Duty Triangular Aluminum Foldable Truss Spigot 520 * 950 Mm 1

Heavy Folding Duty Triangular Aluminum Foldable Truss Spigot 520 * 950 Mm 2



Heavy Folding Duty Triangular Aluminum Foldable Truss Spigot 520 * 950 Mm 3



Why choose LEDIKA Truss ?

1. 16-year's experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.



FAQ :
Q. Does LEDIKA accept OEM/ODM service ?
Yes , you can custom design or selected our design (OEM /ODM is high welcome) , our factory have professional design team and can do as your offered design .
Q.How to get samples from LEDIKA?
a.If you need samples for quality check , sample fees should be charged from buyer .
b.Free sample are available when order confirmed.
c.Most of the sample fees will be returned to you when order confirmed.
Q. What is the delivery time ?
7-15 days for batch goods regular size truss are in stock . Urgent order is also available.
Q. What is your trade terms?
Our trade terms are Ex-work , FOB , CNF & CIF
Q. Where is your factory and how can I visit your company ?
Ledika is a professional manufacturer in stage equipment, located in Nansha ,Guangzhou ,GuangDong , China . Warmly welcome you come to visit our factory .
Q. What advantage do you have to make me choose LEDIKA stage truss ?
We are a true factory & specialized in producing aluminum truss & other performance equipment more than 13 years . Humanist ans innovation are our base to develop, and we offer the best sale service for you .
