Exhibit Staging Display Folding Truss 600x1200 mm Fireproof Recycle

Place of Origin Guangzhou,China
Brand Name LEDIKA
Certification TUV,ISO9001
Model Number SQS/SQB/TR
Minimum Order Quantity 1set
Price USD100-300/M
Packaging Details Carton with film / Flight case / Wooden box
Delivery Time 15-20 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 50,000M per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Aluminum Folding Truss Truss Main Tube Diameter 60mm
Type Spigot Certification TUV , ISO9001
Truss Length 0.5m-4m Packing Carton With Film
MOQ 1 Set
High Light

foldable truss

,

dj truss stand

Leave a Message
Product Description

Exhibit Staging Display Folding Truss 600x1200 mm Fireproof Recycle



Product Description





1) Folding Truss is a highly versatile and cost effective trussing system. It is a triangular truss and, as its name suggests, folds together to a flat width of 100mm (4"). This saves on storage space and transportation costs making it extremely cost effective. Folding Truss is manufactured from high-grade 6082-T6 aluminium alloy.
The locking and folding mechanism is very simple and easy to use, with no loose or additional parts to lose or misplace.



2) Folding truss is completely compatible with Slick Maxi Beam truss, with the simple addition of two extra lugs on each face of Maxi corner and sleeve block, (a standard option), as it uses the same fork end fitting joints and main tube diameter and is the same overall size. This means that you can inter-mix straight runs of truss to optimise your design.

3) Folding truss comes in standard lengths of 1M and 2M the same as Beam.



4) Along with using standard Beam corners with folding truss fittings we also offer Folding truss only variants of horizontal corner blocks.






Product's Material



  • Material : 6082 Aluminum
  • Color : Silver, Black, Red, Green or Customized
  • Standard : TUV, ISO9001
  • Shape : Square, Triangle



Specification



  1. Type: Spigot
  2. Shape: Triangle or Square
  3. Color: Silver or customized
  4. Certification: TUV,ISO9001
  5. Length available: 0.5m—4m
  6. Package: Carton





Other Item Truss for reference



Truss Shape

Connection Type

Specification of Size/mm

Joint

Square

Spigot

600x1200

Ø 60mm Spigot

Triangle

Spigot

520x470

Ø 60mm Spigot

Triangle

Spigot

520x950

Ø 60mm Spigot



1) FT5247 Aluminum triangle folding truss

  • Truss size : 520x470mm
  • Material of folded part: A380
  • Main tube : Diameter  Ø50mm, Thickness 4mm
  • Joint :  Diameter  Ø60mm spigot
  • Standpipe : Diameter  Ø30mm, Thickness 2mm
  • The largest safety loading : 1179-2809kgs
  • Max Span : 20m


2) FT5295 Aluminum triangle folding truss

  • Truss size : 520x950mm
  • Material of folded part: A380
  • Main tube : Diameter  Ø50mm, Thickness 4mm
  • Joint :  Diameter  Ø60mm spigot
  • Standpipe : Diameter  Ø30mm, Thickness 2mm
  • The largest safety loading : 1055-1898kgs
  • Max Span : 36m



3) FT60120 Aluminum square folding truss

  • Truss size : 600x1200mm
  • Material of folded part: A380
  • Main tube : Diameter  Ø50mm, Thickness 4mm
  • Joint :  Diameter  Ø60mm spigot
  • Standpipe : Diameter  Ø30mm, Thickness 2mm
  • The largest safety loading : 1100-2800kgs
  • Max Span : 20m


Features





• Portable folding truss system designed to enhance any mobile set up at any size venue

• Quick and easy set up and tear down with pre-labeled connections and quick release pins

• Enhances durability and corrosion resistance with aluminum construction

• Holds up to 1000-2800KG (evenly distributed) when fully assembled

• Designed to LEDIKA COMPANY

• Match any setup with selectable height options




Pictures

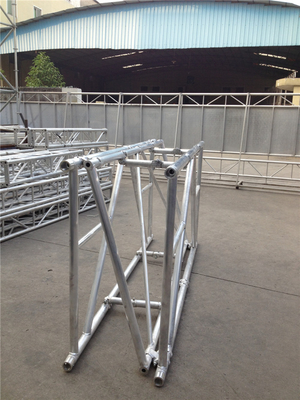

Exhibit Staging Display Folding Truss 600x1200 mm Fireproof Recycle 0

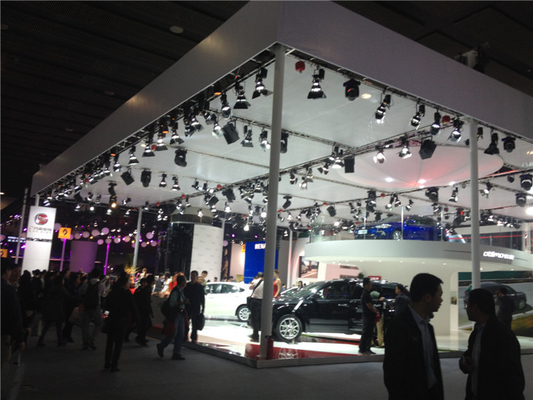

Exhibit Staging Display Folding Truss 600x1200 mm Fireproof Recycle 1

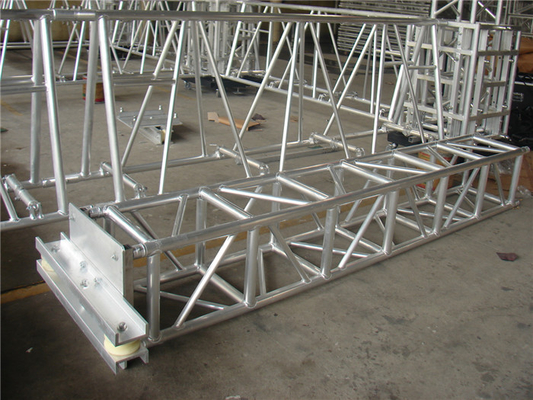

Exhibit Staging Display Folding Truss 600x1200 mm Fireproof Recycle 2






Application



  • Performing Arts Stage Equipment
  • Exhibition Truss Equipment
  • Mechanical Stage Design
  • Entertainment Equipment Rental Services
  • Project Design and Installation





Product Advantages

1. Aluminium material-durable and absolutely environmental friendly.
2. Light weight-easy to carry around, store and transport.
3. High quality-strong loading capability.
4. Unique design-with perfect craftsmanship,owns technicians design for your special request.
5. Favorable price-with competitive price under the assurance of quality.




Other Information of Product

  • Warranty: 2 Years
  • Sample: Depends on the quantity of order.
  • Design: Any designs can be customized.



Type of Trading


Payment Terms T/T, L/C, Western Union
Payment 50% TT in davance, the balance should be against before shipment
Delivery 15-20 working days after receive your deposit
Loading Port Guangzhou / Shenzhen




Company profile:



LEDIKA is a professional manufacturer in stage equipment in Panyu, Guangzhou, Guangdong, China.

Through 15 years development, we are becoming an integrative company on aluminum truss, layer truss, LED lighting, stage and flight case, professionally in studying, designing, producing, renting and mounting together.



"LEDIKA"approached its brand and own its wide market. We participated in the builder of 2007 Special Olympics Games Opening Ceremony,2008 Beijing Olympics Games, 2010 the 16th Asian Games.

Honesty, humanist and innovation are our base to develop.
