Big Event 4m Aluminium Folding Truss Removable Truss Tower System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Heavy Truss | Size Of Tube | 50*4mm |
|---|---|---|---|
| Size Of Truss | 1-4m , 520 X 950 Mm | Material | Aluminum 6082-T6 |
| Color | Custmozied | Connector | Spigot |
| Storage | Folding | Range | Outdoor/Big Event |
| High Light | 4m Aluminium Folding Truss,Big Event Aluminium Folding Truss |
||
Product Description

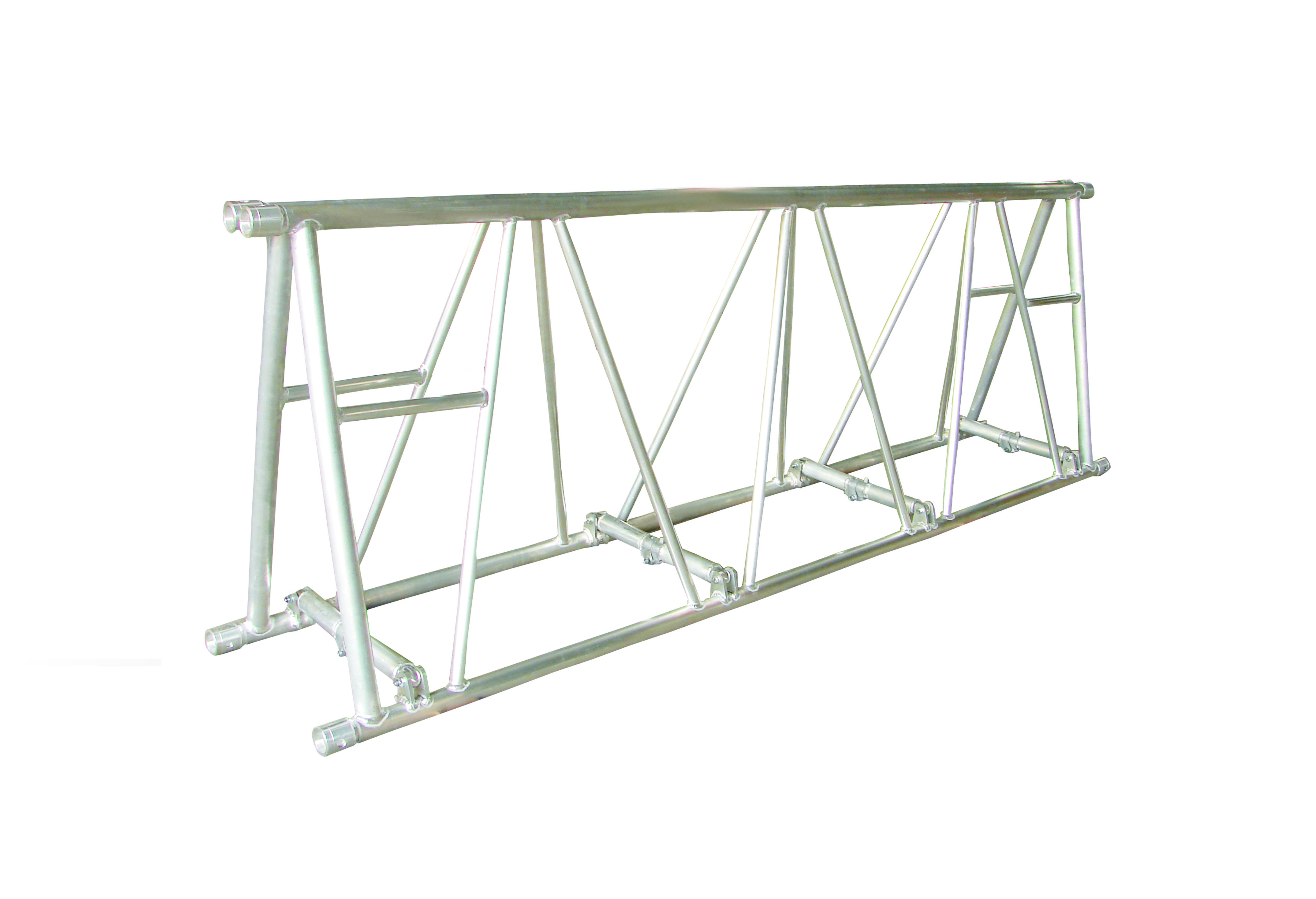

Aluminium Resistant Folding Truss Removable Truss Tower System
Product Specifications:
| FT5295 Allowable Loading | |||||
| 6061-T6 50*4mm tube as main tube 30*2mm as brace tube | |||||
| Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
| ( M ) | ( ft ) | ( KG ) | ( KG ) | ( KG ) | ( mm ) |
| 4.0 | 13.1 | 2809.0 | 702.2 | 2756.2 | 4.0 |
| 5.0 | 16.4 | 2809.0 | 561.4 | 2319.8 | 6.0 |
| 6.0 | 19.7 | 2809.0 | 468.2 | 1932.8 | 8.0 |
| 7.0 | 23.0 | 2809.0 | 401.3 | 1657.2 | 10.0 |
| 8.0 | 26.2 | 2809.0 | 351.1 | 1342.0 | 20.0 |
| 9.0 | 29.5 | 2621.5 | 291.3 | 1313.0 | 31.0 |
| 10.0 | 32.8 | 2358.4 | 235.8 | 1181.0 | 40.0 |
| 11.0 | 36.0 | 2149.0 | 195.6 | 1073.6 | 50.0 |
| 12.0 | 39.3 | 1964.2 | 163.7 | 984.7 | 61.0 |
| 13.0 | 42.6 | 1819.0 | 139.9 | 909.0 | 74.0 |
| 14.0 | 45.9 | 1687.8 | 120.6 | 843.9 | 89.0 |
| 15.0 | 48.2 | 1570.8 | 104.7 | 787.6 | 103.0 |
| 16.0 | 52.5 | 1478.4 | 92.4 | 738.3 | 118.0 |
| 17.0 | 55.7 | 1391.3 | 81.8 | 695.2 | 136.0 |
| 18.0 | 59.0 | 1314.7 | 73.0 | 656.5 | 154.0 |
| 19.0 | 52.3 | 1237.3 | 65.1 | 622.2 | 171.0 |
| 20.0 | 65.6 | 1179.2 | 59.0 | 590.5 | 195.0 |
Product Description:
This foldable truss system is built for mobile use with large spans and high loads. When folded, transport volume is reduced by 50%. The folding design scheme with self-locking folding ends and socket bolt style ensures smart installation and similarity, and fully avoids docking failures of wrong trusses during design. At the same time, we can use "+" type or thicker alloy aluminum tubes to make this style according to your needs.
Advantages
1. Truss is made of high hardness aluminum.
2. Beautiful appearance and durable.
3. Suitable for various indoor and outdoor performances.
4. We can manufacture the size according to your request.
Packing Photo
Why choose LEDIKA Truss ?
1. 22-year experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.
►Our Products
►Our Projects
FAQ :
Q: Does LEDIKA accept OEM/ODM service?
A: Yes, you can customize the design or choose our design (OEM/ODM is very welcome), our factory has a professional design team and can design according to the design you provide.
Q: How to get samples from LEDIKA?
a. If you need samples for quality checking, the sample fee should be charged to the buyer.
b. Free samples are available after order confirmation.
c. Most of the sample fee will be returned to you after the order is confirmed.
Q: What's the delivery time?
A: For bulk goods, regular size trusses are in stock for 7-15 days. Rush orders are also available.
Q: What are your terms of trade?
A: Our trade terms are Ex Works, FOB.
Q: Where is your factory? How can I visit your company?
A: Ledika is a professional stage equipment manufacturer located in Nansha City, Guangzhou City, Guangdong Province, China. You are warmly welcome to visit our factory.
Q: What advantages do you have for me to choose LEDIKA Stage Terrasse?
A: We are a real factory specialized in producing aluminum truss and other performance equipment for more than 13 years. Humanization and innovation are the basis of our development, and we provide you with the best sales service.
