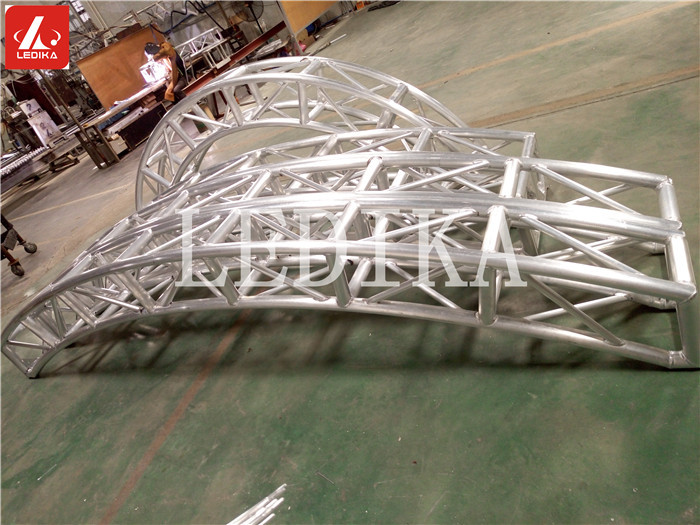

Rotating Round Truss 11.5M Aluminum Square Truss For Circus Adjustable Speed

Place of Origin Guangzhou, China
Brand Name LEDIKA
Certification ISO9001
Model Number XZ-PZ001
Minimum Order Quantity 10pcs
Price negotiable
Packaging Details Carton + Plastic film
Delivery Time 15 days
Payment Terms T/T, L/C
Supply Ability 1000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material 6082 T6 Aluminum Truss Section 500 X 500mm
Length 3M Per Truss Color Silver, Black, Red Or Customized
Shape Arc Weight 68.6KGs
Connector Bolt/ Screw Logo LEDIKA
High Light

square truss


aluminum trusses

Leave a Message
Product Description

Rotating Round Truss 11.5M Aluminum Square Truss For Circus Adjustable Speed





Main Tube :φ32mm*2mm

Brace Tube:φ10mm*2mm

Material:Aluminum 6082-T6

This size is one of our light duty truss series , which is highly successful in the display , shop-fiffting , exhibition , interior decoration and architectural design markets . And it has ladder , triangle and square three different versions . It is often used in shop , display studio and grid showroom .

The main characteristics are compactness , strength , versatility , low unit weight and easy assembly with the box corner system.

Load Table
Span 2 3 4 5 6 8 10 12
Centre Point Load 380 346 258 205 169 123 94 75
Deflection 3 6 11 17 25 45 70 101
Distributed Load 380 378 376 373 337 245 190 150
Deflection 3 8 14 22 31 56 87 126


SB289mm*289mm Square Truss
Size 220mm*220mm
Main Tube 32mm*2mm
Brace Tube 10mm*2mm
Material 6082-T6



Product Description:
Type name Aluminum Square / Box Truss With Global Truss
Material Material: aluminium 6082-T6
(4) Connection way: spigot connection way
(5) Color: natural red or black
(6) Main Barriers Thickness : 3mm thickness
(7) Material: aluminium 6082-T6 stage
Feature Square shape- triangular roof truss
Advantage stronger & more durable & lighter & even keep color
outdoor & indoor use
Package 1) Bubble film 2) Carton 3) wooden case 4) flight case
Delivery way 1) Doot- to- Door: FedEx/DHL/UPS/TNT for samples
2) Sea shipping way to seaport
3) LCL: Delivery to Guangzhou or shenzhen and so on
4) Delivery time: 3-5 days for express.
Payment way a) Term: / CIF / C&F / FOB
b) T/T: 30% down payment with order,then we will arrange production. The balance should be paid before shipment
c) Wertern uinon
Product time 1-2 days received deposit, then will arrange product. So 10 days finished then will arrange shipping out
