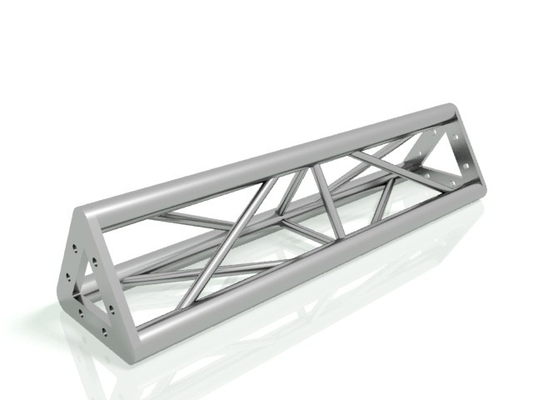

Silver 6082 T6 Aluminum Triangular Square Aluminum Stage Truss For Outdoor Events

Place of Origin Guangzhou, China
Brand Name LEDIKA
Certification ISO9001
Model Number TRB300
Minimum Order Quantity 10pcs
Price $60-$200 per meter
Packaging Details Carton or bubble bag
Delivery Time 15 days
Payment Terms T/T, L/C
Supply Ability 10000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Junction Aluminum Plated Weight 6kg Per Meter
Type Bolt Truss Size 300mm
Length 0.5m-4m Color Silver, Black, Red
Application Games, Events, Bar, Concert, Party Shape Triangle
High Light

aluminum trusses

,

spigot truss

Leave a Message
Product Description

Silver 6082 T6 Aluminum Triangular Aluminum Square Truss For Outdoor Events





Description



1. Model No.: TRB300



2. Section size: 300*300 triangle


3. Material: 6082-T6


4. Main tube: diameter 50*3mm


5. Braces: diameter 30*2mm


6. Length: 500mm - 4000mm





Allowable Loading



TRB30 Allowable Loading
 6082-T6   50*3mm tube as main tube  25*2mm as brace tube
Span LOAD ALL Unitformly distributed load(UDL) Centre point load(CPL) DEFLECTION
m ( ft )  kg kg/m kg (mm)
4 13.1 781.4 195.4 390.7 5
5 16.4 624.8 125 312.4 13
6 19.7 522.7 87.1 261.4 22
7 23 443.5 63.4 221.8 33
8 26.2 387.2 48.4 193.6 45
9 29.5 340.6 37.8 170.7 59
10 32.8 308 30.8 154 75
11 36 280.7 25.5 140.8 92
12 39 253.4 21.1 126.7 110




Product Advantages



1. 16 years perfessional stage truss big events experience since 2001.


2.  Project cases are cover to all over the world.


3.  LEDIKA Brand is a government tender brand and famous in many countries.


4.  OEM and R&D support.


5.  We attend to prolight show every year.


6.  With material 6082 T6 guarantee certification.


7.  Have TUV and ISO certification.


8.  Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games,

Shanghai Expo and World Youth Skiing Championships etc.


9.  Best quality aluminium truss and stage, strict working production process.


10. Life-time after sales service.





Material  Guarantee 6082



The proportion of chemical composition for 6061 and 6082 is different.

One of the most significant newer alloys is 6082, similar to 6061 but with better properties.

6082 has become popular in Europe because it has higher strengths which is allowable tensile strengths are 10 to 18% higher for 6082 than 6061 and better general corrosion resistance than 6061.

6082 was adopted to be using in aviation industry.





Applications:



1.Celebration services



Opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon cutting, the launching ceremony, the unveiling ceremony, the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony, public relations etiquette; promotion of new products, awards ceremony;



2.Business services



Press conferences, new product launches, the various types conferences such as for investment,order, awards, the annual meeting, customer appreciation, sightseeing exchanges



3.Performances service



Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic features performances, Chinese and foreign star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.
