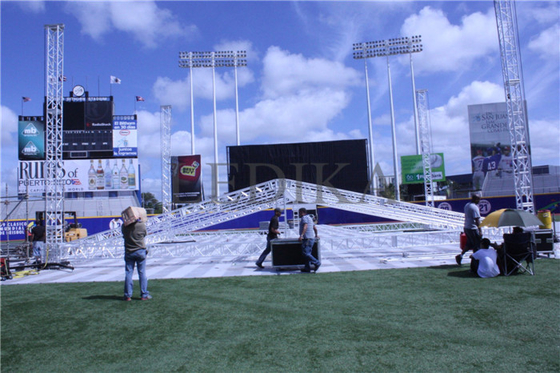

Triangle Aluminum Trusses Ultralight For Roof Trussing System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWeight | Ultralight | Connection | Bolt |
---|---|---|---|
Truss Size | 300mm*300mm | Length | 1.6ft-13ft |
Color | Silver, Black, Red | Range | Games, Events, Bar, Concert, Party |
Shape | Triangle,Square | Main Tube | 50mm*3mm |
High Light | square truss,aluminum trusses |
6082 T6 Aluminum Triangle Truss 300mm*300mm Ultralight For Roof Trussing System
Description
1. Model No.: TRB300
2. Section size: 300mm*300mm triangle
3. Material: 6082-T6
4. Main tube: diameter 50*3mm
5. Braces: diameter 30*2mm
6. Length: 500mm - 4000mm
Allowable Loading
TRB30 Allowable Loading | |||||
6082-T6 50*3mm tube as main tube 25*2mm as brace tube | |||||
Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
m | ( ft ) | kg | kg/m | kg | (mm) |
4 | 13.1 | 781.4 | 195.4 | 390.7 | 5 |
5 | 16.4 | 624.8 | 125 | 312.4 | 13 |
6 | 19.7 | 522.7 | 87.1 | 261.4 | 22 |
7 | 23 | 443.5 | 63.4 | 221.8 | 33 |
8 | 26.2 | 387.2 | 48.4 | 193.6 | 45 |
9 | 29.5 | 340.6 | 37.8 | 170.7 | 59 |
10 | 32.8 | 308 | 30.8 | 154 | 75 |
11 | 36 | 280.7 | 25.5 | 140.8 | 92 |
12 | 39 | 253.4 | 21.1 | 126.7 | 110 |
Product Advantages
1. 15 years perfessional stage truss big events experience since 2001.
2. Projects case are cover to all over the world.
3. LEDIKA Brand is famous in many countries and government tender brand.
4. OEM and R&D support.
5. We attend to prolight show every year.
6. With material 6082 T6 guarantee certification.
7. Have ISO certification.
8. Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games,
Shanghai Expo and World Youth Skiing Championships etc.
9. Best quality aluminium truss and stage, strict working production process.
10. Life-time after sales service.
Material Guarantee 6082
The proportion of chemical composition for 6061 and 6082 is different.
One of the most significant newer alloys is 6082, similar to 6061 but with better properties.
6082 has become popular in Europe because it has higher strengths which is allowable tensile strengths are 10 to 18% higher for 6082 than 6061 and better general corrosion resistance than 6061.
6082 was adopted to be using in aviation industry.
Applications:
1.Celebration services
Opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon cutting, the launching ceremony, the unveiling ceremony, the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,, public relations etiquette; promotion of new products, awards ceremony;
2.Business services
Press conferences, new product launches, the various types conferences such as for investment,order, awards, the annual meeting, customer appreciation, sightseeing exchanges
3.Performances service
Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic features performances, Chinese and foreign star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.
