Outdoor Advertising Aluminum Goal Post Truss LED Screen 6x8 m 3mm Thickness

Place of Origin Guangzhou,China
Brand Name LEDIKA
Certification TUV,ISO9001
Model Number SQS/SQB/TR
Minimum Order Quantity 1set
Price USD100-300/M
Packaging Details Carton with film / Flight case / Wooden box
Delivery Time 15-20 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 50,000M/ week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Truss Material Aluminum 6082-T6 Size Of Main Tube Diameter 50mm, Thickness 3mm
Function Hanging LED Screen, Line Arrey Speaker And Background Cloth Suit For Wedding, Exhibition, Company, Ceremony
Size 6x8m, Or Customized Color Silver Or Customized
Loading Port Guangzhou / Shenzhen Port , China
High Light

goal post truss system

,

aluminium goal posts

Leave a Message
Product Description

Outdoor Advertising Aluminum Goal Post Truss LED Screen 6x8 m 3mm Thickness




Product Description



Goal Post truss is a lightweight 50 mm quadrate / triangular truss providing the perfect location to mount lights and hang backdrops for a professional presentation. It assembles in minutes using numbered sections.

For added value and versatility, the lightweight aluminum truss can be assembled at two different heights. Lighting truss such as the arch and goal post are perfect for venues with low ceilings or even your home with height of 7.8ft.

To simplify transportation, use the optional, custom-designed to carry the entire on the road. Get a professional look in minutes with this affordable solution designed for DJs, bands, or any entertainer on the go.

Goal Post Truss mainly used for small, medium event, exhibition, mobile show, background truss and so on. It can hang LED screen,line arrey speaker and background cloth. Its advantage is very simple and fast.




Product's Material


Material 6082 Aluminum
Color Silver, Black, Red, Green or Customized
Standard TUV, ISO9001
Shape Square, Oblong, Trangle, Round



Specification

Type: Spigot, bolt
Shape: Goal Post
Color: Silver or customized
Certification: TUV
Package: Carton
Main tube: 50*3mm
Brace tube: 20*2mm, 25*2mm, 30*2mm
Length available: 0.5m—4m
All vice tube,four sides inclined tube;
Main Tube:Φ50*3mm;
Vice Tube:Φ50*3mm;
Brace:Φ25*2mm;
The Largest Span:20m;
Symmetrical Load:800kg.


Features



• Portable goal post truss system designed to enhance any mobile set up at any size venue
• Quick and easy set up and tear down with pre-labeled connections and quick release pins
• Enhances durability and corrosion resistance with aluminum construction
• Holds up to 595lbs (270kg) (evenly distributed) when fully assembled
• Designed to LEDIKA COMPANY
• Match any setup with selectable 5.5ft or 7.7ft height options





Truss Information



Truss Shape

Connection Type

Specification of Size/mm

Square

Screw

450*450,400*400,300*300,305*305,410*410,290*290

Oblong

Screw

520*1000,600*760,520*760,450*600

Triangle

Screw

300*300,400*400

Square

Spigot

450*450,387*387,287*287,290*290

Oblong

Spigot

600*760,520*760

Triangle

Spigot

287*287,387*387



  • Main Tube Size : Diameter  Ø 50mm , Thickness 3mm
  • Vice Tube Size : Diameter  Ø 50mm , Thickness 2mm / Diameter  Ø 20mm , Thickness 2mm
  • Max Span : 12-24m
  • Loading Weight : 500-1000kg




Pictures

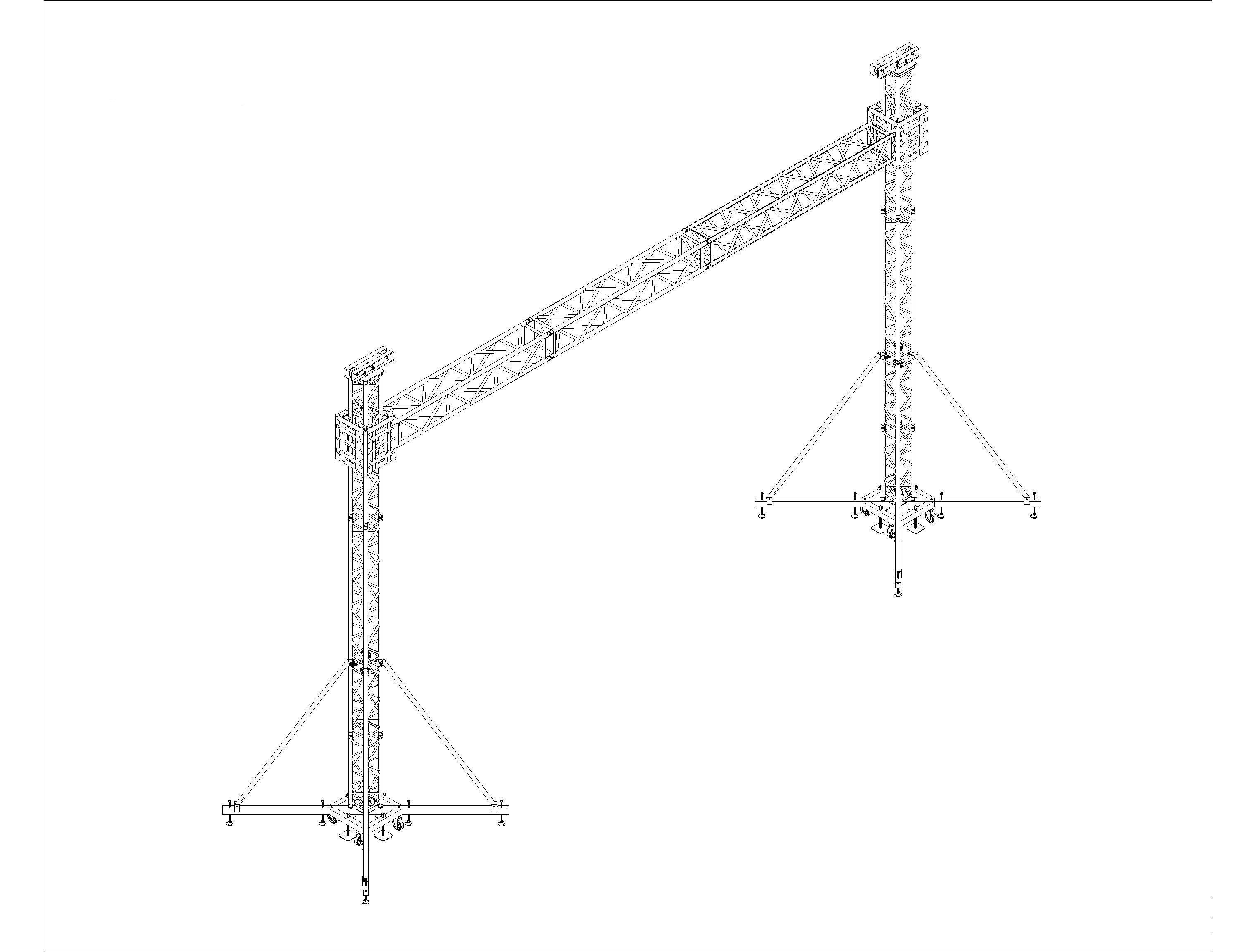

Outdoor Advertising Aluminum Goal Post Truss LED Screen 6x8 m 3mm Thickness 0

Outdoor Advertising Aluminum Goal Post Truss LED Screen 6x8 m 3mm Thickness 1

Outdoor Advertising Aluminum Goal Post Truss LED Screen 6x8 m 3mm Thickness 2


Product Advantages

1. Aluminium material-durable and absolutely environmental friendly.
2. Light weight-easy to carry around, store and transport.
3. High quality-strong loading capability.
4. Unique design-with perfect craftsmanship,owns technicians design for your special request.
5. Favorable price-with competitive price under the assurance of quality.




Other Information of Product

  • Warranty: 2 Years
  • Sample: Depends on the quantity of order.
  • Design: Any designs can be customized.



Type of Trading


Payment Terms T/T, L/C, Western Union
Payment 50% TT in davance, the balance should be against before shipment
Delivery 15-20 working days after receive your deposit
Loading Port Guangzhou / Shenzhen




FAQ



1, Q:Where's your factory?

    A:Our factory is loaded in Panyu District,Guangzhou City,China.

2, Q: What's your Delivery?

    A: It's about 35 days.

3, Q:What's your loading port?

    A: Guangzhou / Shenzhen Port.

4, Q:What's your payment?

    A: 50% deposit, the balance should be against before delivery.
