Spigot Aluminum A Speaker Truss Layer Truss DJ Lighting Stands 48.3mm Steel Tube

Place of Origin Guangzhou,China
Brand Name LEDIKA
Certification TUV,ISO9001
Model Number SQS/SQB/TR
Minimum Order Quantity 1set
Price USD100-300/M
Packaging Details Carton with film / Flight case / Wooden box
Delivery Time 15-20 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 12,000M/ week
Product Details
Aluminum Truss 6082-T6 Aluminum Layer Truss 48.3mm Steel Tube
Usage Vocal Concert , Celebration, Show,Modern Fancywork Main Truss Diameter 50mm, Thickness 3mm
Length 0.5m, 1m, 2m, 3m, 4m Feature Waterproof, Fireproof, Anticorrosive
Experience Over 15 Years
High Light

dj speaker stands

,

speaker truss stand

Leave a Message
Product Description

Spigot Aluminum A Speaker Truss Layer Truss DJ Lighting Stands 48.3mm Steel Tube




Two main Item



1) Layer Speaker Truss : The main material is 48.3mm steel tube. There is 5 parts to assembly different styles and size. They are often use for big events and projects.



Material 48.3mm steel
Normal size 1x2m,2x2m,1.22x2.44m,2.44x2.44m
Specification Layer-P1 Empty adjustable outriggers (High 350mm / 650mm)
Layer-P2 Base Stock ( High 330mm)
Layer-P3 Pole (1m / 2m)
Layer-P4 Beam
Layer-P5 Corner Beam





2) Aluminum / A Speaker Truss:  Mainly used for flying line array speaker, the highest height is 6-18m. Its advantage is only use some accesseries to connect normal specification truss together.


1, Material : Aluminum alloy 6082/T6

2, Main Tube are Ø 50mm , Thickness 3mm aluminum

3, Diagonals are Ø 50mm , Thickness 2mm aluminum

4, Single length : 0.5m, 1m, 2m, 3m, 4m, customized

5, Connection : Spigot, also provide screw and bolt types for your choice.

6, Shape : Square, triangle, ladder, circle aluminum truss

7, Weight Capacity : 500-1000kgs according to the truss size

8, Canopy : Sun canopy, rain canopy. No canopy

9, Certification : TUV

10, Size for optional : 287x287mm,290x290mm,300x300mm,387x387mm,400x400mm,450x450mm,520x1000mm,520x760mm,600x760mm,450x600mm

11, Application : To hang lighting,speaker,led and so on aluminum truss


Aluminum Truss Information



Truss Material

Aluminum 6082 16degrees hardness

Light Series

287x287mm,290x290mm,300x300mm

Medium Series 450x450mm,400x400mm,387x387mm
Heavy Series 520x1000mm,520x760mm,600x760mm,450x600mm

Truss main tube

Ø 50mm , Thickness 3mm

Truss sub-tube

Ø 50mm , Thickness 2mm

Truss brace tube

20*2mm,25*2mm,30*2mm,30*3mm

Length available

0.5m-4m(Normal length ) or customized

Max Span 12-30m

Max loading

500-4700kg

Applications

Concert, Outdoor and indoor performance and shows,

Exhibitions,etc




Technical information

  • Custom lengths available upon request
  • Equipped with steel spigots/ bolts
  • Fabricated by AWS / SFL certified welders




Layer Speaker Truss



Spigot Aluminum A Speaker Truss Layer Truss DJ Lighting Stands 48.3mm Steel Tube 0

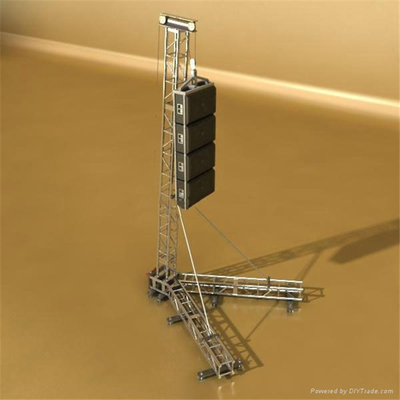

Aluminum / A Speaker Truss



Spigot Aluminum A Speaker Truss Layer Truss DJ Lighting Stands 48.3mm Steel Tube 1
Spigot Aluminum A Speaker Truss Layer Truss DJ Lighting Stands 48.3mm Steel Tube 2




Applications:


Those Speaker truss is for the projects with ever increasing load and distance requirements.This Aluminum Truss display booth system are constructed of different size of  Aluminum box trusses that has a powder coated finish in your choice of Five Standard Colors, (Custom Colors are available).The tubular steel construction ensures that your exhibit will be sturdy and solid without sacrificing the portability and look of a modern portable display. The simple Knob and Pin Connection allows a very easy, quick set up, (Fastest truss Connection available) the sturdy Aluminum truss supports allow for a solid exhibiting system.They will suit for the Heavy, Medium , Small Events or Shows.




Advantage

1.Above is our normal size and description,we offer OEM service,truss size can be customize.
2.The truss is made of aluminum 6082 with high hardness.
3.The truss have different shape: ladder,triangle,square,arch,circle or available on your request.



Other Information of Product

  • Warranty: 2 Years
  • Sample: Depends on the quantity of order.
  • Design: Any designs can be customized.



Type of Trading


Payment Terms T/T, L/C, Western Union
Payment 50% TT in davance, the balance should be against before shipment
Delivery 15-20 working days after receive your deposit
Loading Port Guangzhou / Shenzhen





Company profile:



LEDIKA is a professional manufacturer in stage equipment in Panyu, Guangzhou, Guangdong, China.

Through 15 years development, we are becoming an integrative company on aluminum truss, layer truss, LED lighting, stage and flight case, professionally in studying, designing, producing, renting and mounting together.



"LEDIKA"approached its brand and own its wide market. We participated in the builder of 2007 Special Olympics Games Opening Ceremony,2008 Beijing Olympics Games, 2010 the 16th Asian Games.

Honesty, humanist and innovation are our base to develop.
