Aluminum Concert Stage Truss Heavy Duty Large Event Performance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Spigot Truss | Size Of Tube | 50*3mm |
|---|---|---|---|
| Size Of Truss System | Customized | Material | Aluminum 6081-T6 |
| Application | Outdoor | Events | Exhibition,Concert |
| Color | Silver | Feature | Heavy Duty, Durable |
| High Light | Aluminum Concert Stage Truss,Heavy Duty Aluminum Concert Stage Truss |
||
Product Description

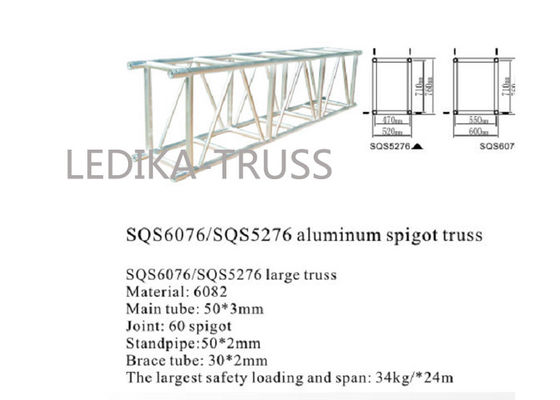

Heavy Duty Large Event Performance Aluminum Concert Stage Truss
Product Description:
This truss is heavy duty truss. Material 6061-T6, Main tubes Φ50×3mm, Braces Φ50×2mm and Φ30×2mm ,including 4 sides accessories
1. Heavy truss is made of high hardness aluminum. Material: 6061-T6.
2. Beautiful appearance, durable.
3. Assembly positioning is accurate and simple.
4. Suitable for all kinds of indoor and outdoor performances.
5. We can manufacture the size according to your requirements.
Product Specifications:
| SQS5276 Allowable Loading | |||||
| 6061-T6 50*3mm "+"plus tube as main tube 30*2mm as brace tube | |||||
| Span | LOAD ALL |
Unitformly |
Centre point load(CPL) | DEFLECTION | |
| m | ( ft ) | kg | kg/m | kg | (mm) |
| 2.0 | 6.5 | 4109.2 | 2054.6 | 3914.2 | 1.0 |
| 3.0 | 9.8 | 4098.0 | 1366.0 | 3903.5 | 4.0 |
| 4.0 | 13.1 | 4085.4 | 1021.4 | 3177.1 | 7.0 |
| 5.0 | 16.4 | 4074.8 | 815.0 | 2658.6 | 10.0 |
| 6.0 | 19.7 | 4064.3 | 677.4 | 2205.4 | 15.0 |
| 7.0 | 23 | 3760.0 | 537.1 | 1880.0 | 20.0 |
| 8.0 | 26.2 | 3265.2 | 408.1 | 1633.9 | 26.0 |
| 9.0 | 29.5 | 2881.5 | 320.2 | 1442.1 | 33.0 |
| 10.0 | 32.8 | 2579.9 | 258.0 | 1287.3 | 40.0 |
| 11.0 | 36 | 2313.9 | 210.4 | 1158.9 | 50.0 |
| 12.0 | 39.3 | 2103.6 | 175.3 | 1051.8 | 59.0 |
| 13.0 | 42.6 | 1917.7 | 147.5 | 959.8 | 70.0 |
| 14.0 | 45.9 | 1759.6 | 125.7 | 880.5 | 81.0 |
| 15.0 | 49.2 | 1617.4 | 107.8 | 811.0 | 93.0 |
| 16.0 | 52.5 | 1492.3 | 93.3 | 749.5 | 105.0 |
| 17.0 | 55.8 | 1383.2 | 81.4 | 694.6 | 119.0 |
| 18.0 | 59.1 | 1286.0 | 71.4 | 645.0 | 134.0 |
| 19.0 | 62.4 | 1194.0 | 62.8 | 600.0 | 149.0 |
| 20.0 | 65.7 | 1111.3 | 55.6 | 559.0 | 165.0 |
| 21.0 | 69 | 1041.9 | 49.6 | 521.3 | 182.0 |
| 22.0 | 72.3 | 960.5 | 43.7 | 486.9 | 199.0 |
| 23.0 | 75.6 | 897.7 | 39.0 | 454.5 | 218.0 |
| 24.0 | 78.9 | 841.4 | 35.1 | 424.7 | 237.0 |
Advantages
1. 22 years perfessional stage truss big events experience since 2001.
2. Projects case are cover to all over the world.
3. LEDIKA Brand is famous in many countries and government tender brand.
4. OEM and R&D support.
5. We attend to prolight show every year.
6. With material 6082 T6 guarantee certification.
7. Have TUV and ISO certification.
8. Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games, Shanghai Expo and World Youth Skiing Championships etc.
9. Best quality aluminium truss and stage, strict working production process.
10. Life-time after sales service.
Why choose LEDIKA Truss ?
1. 22-year experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.
►Our Products
►Our Projects
FAQ :
Q: Does LEDIKA accept OEM/ODM services?
A: Yes, you can customize the design or choose our design (OEM/ODM is very welcome). Our factory has a professional design team, which can follow the design you provide.
Q. How to get samples from LEDIKA?
A. If you need samples for quality inspection, the sample fee shall be charged to the buyer.
B. Free samples can be provided after order confirmation.
C. After the order is confirmed, most of the sample fee will be refunded to you.
Q: What is the delivery time?
A: The trusses of conventional size for batch goods in 7-15 days are in stock. Emergency orders are also available.
Q: What are your terms of trade?
A: Our terms of trade are ex-works price, FOB, CNF and CIF
Q: Where is your factory? How can I visit your company?
A: Ledika is a professional stage equipment manufacturer located in Nansha, Guangzhou, Guangdong Province, China. Warmly welcome you to visit our factory.
Q: What advantages do you have for me to choose LEDIKA stage truss?
A: We are a real factory specializing in producing aluminum trusses and other performance equipment for more than 13 years. People oriented and innovation are the foundation of our development. We provide you with the best sales services.
