387*387mm Square T6 Aluminum Spigot Truss For Activity

Place of Origin Guangzhou ,China
Brand Name LEDIKA
Certification ISO9001
Model Number SQS387
Minimum Order Quantity 1 set
Price FOB,EXW
Packaging Details Air bubble film or carton
Delivery Time 2-3 weeks
Payment Terms L/C, Western Union, MoneyGram, T/T
Supply Ability 1000 pcs/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model No. SQS387 Material Aluminum 6061-T6
Main Tube Diameter 50*3mm Bruce Tube Diameter 20*2mm/25*2mm/30*2mm
Color Black Or Customized,Silver Connection Way Spigot Connector
Application Events ;Exhibition ,Music,Performance,Events,Concert Feature Heavy Load,Portable/no Rust
High Light

T6 Aluminum Spigot Truss

,

Square Aluminum Spigot Truss

Leave a Message
Product Description



387*387mm Outdoor Durable Square Aluminum Spigot Truss For Activity


Product Detail:


SQS Series truss are connected by spigots.It's easy to set by hammer.Nice ,Fast, Easy, Saving time and Saving labor.It's suitable for mobile events,tower of Medium project and ceiling system indoor.Meanwhile ,widely used for exhibition truss .Available size:450*450/400*400/387*387/287*287mm. There are 2 style for SQS series truss,ordinary one with brace and indoor one without brace .



They have their respective pictures for reference . Ordinary type's characteristic is that , when SQS is choosed as tower,its brace's design can make you climb aluminum truss conveniently ,comfortably ,safely. So ordinary aluminum truss is generally choosed and used as team or tower. Indoor type's characteristic is that its design has no brace, so when it is choosed and used as tower,it is not smooth and comfortable to climb .



So it is not suitable as tower.Its brace is fully adopted "△" type,when it is used as ceiling or beam,you will see other kinds of aluminum trusses can't be comparable with its slinky degree.But all the trusses have sameness:they have brace, two tilted pipes derive from "▽",because each "△"type,structures a triangle,its stability can greatly strengthen aluminum metal safety factor.

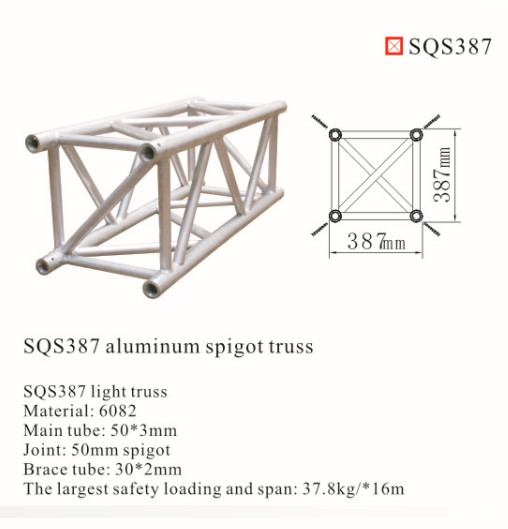

Truss section specification
Size of Truss 287*287mm 387*387mm 400*400mm 450*450mm
connection Spigot Spigot Spigot Spigot
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
standpipe Φ20*2mm Φ30*2mm Φ30*2mm Φ30*2mm
Truss Brace tube Diameter Ø 20mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm
Truss Joint Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm
Max Loading 520-800kg 690-930kg 690-930kg 790-1100kg
Max Span 12m 16m 16m 18m

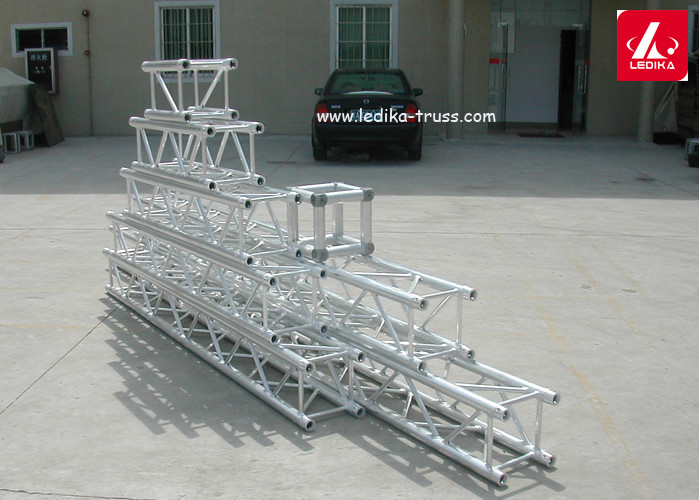

387*387mm  Square T6 Aluminum Spigot Truss For Activity 0

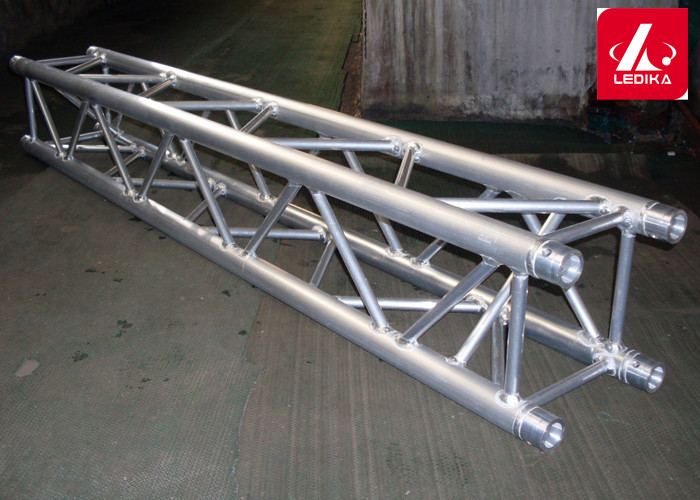

387*387mm  Square T6 Aluminum Spigot Truss For Activity 1


387*387mm  Square T6 Aluminum Spigot Truss For Activity 2



Why choose LEDIKA Truss ?

1. 16-year's experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.



►Our Products


387*387mm  Square T6 Aluminum Spigot Truss For Activity 3



►Our Projects



387*387mm  Square T6 Aluminum Spigot Truss For Activity 4



FAQ :
Q: Does LEDIKA accept OEM/ODM service ?
A: Yes , you can custom design or selected our design (OEM /ODM is high welcome) , our factory have professional design team and can do as your offered design.

Q.How to get samples from LEDIKA?
a.If you need samples for quality check , sample fees should be charged from buyer .
b.Free sample are available when order confirmed.
c.Most of the sample fees will be returned to you when order confirmed.

Q: What is the delivery time ?
A: 7-15 days for batch goods regular size truss are in stock . Urgent order is also available.

Q: What is your trade terms?
A: Our trade terms are Ex-work , FOB , CNF & CIF

Q: Where is your factory and how can I visit your company ?
A : Ledika is a professional manufacturer in stage equipment, located in Nansha ,Guangzhou ,GuangDong , China . Warmly welcome you come to visit our factory.

Q: What advantage do you have to make me choose LEDIKA stage truss ?
A : We are a true factory & specialized in producing aluminum truss & other performance equipment more than 13 years . Humanist ans innovation are our base to develop, and we offer the best sale service for you .
