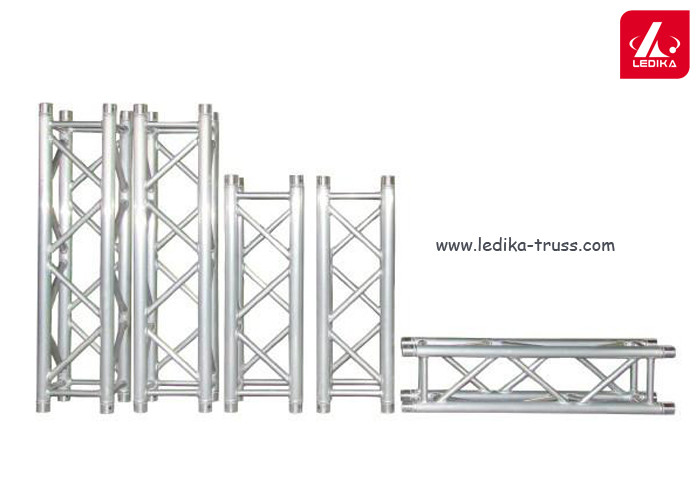

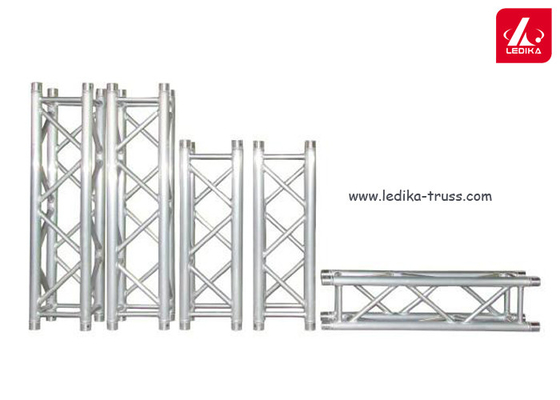

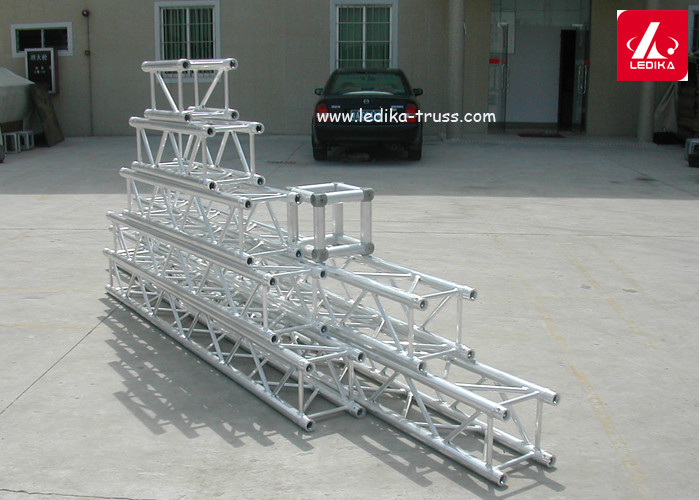

290*290mm 6061 T6 Aluminum Square Truss For Build Event
| Place of Origin | Guangzhou ,China |
|---|---|
| Brand Name | LEDIKA |
| Certification | ISO9001 |
| Model Number | SQS290 |
| Minimum Order Quantity | 1 set |
| Price | FOB，EXW |
| Packaging Details | Air bubble film or carton, or Customized |
| Delivery Time | 2-3 weeks |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 pcs/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No. | SQS290 | Material | Aluminum 6061-T6 |
|---|---|---|---|
| Size | 290*290mm | Height | Customized |
| Color | Black, Silver, Red, Etc. | Connection | SPIGOT |
| Main Tube | 50*3mm | Brace Tube | 30*2mm;25*2mm;20*2mm |
| Vice Tube Thickness | φ20*2mm; φ25*2mm; φ50*2mm; φ50*3mm | Key Words | Outdoor Roof Truss;Crank Truss Stands,stage Truss Systems, Aluminum Truss Systems,Truss Shape Ladder Truss; Triangular Truss; Square Truss; Arch Truss; Circle Truss; Folding Truss |
| Feature | Non-rust, Fireproof, Hard Wearing, Recycle,Easy To Assemble And Dismantle | Usage | Concert; Events; Exhibition; Wedding; Performance; Show And So On |
| High Light | Event T6 Aluminum Square Truss,Non Rust 6061 Aluminum Square Truss,Fireproof Aluminum Square Truss |
||
Product Description
290*290mm Easily And Quickly 6061-T6 Aluminum Square Truss For Build Event
Product Introduction
Aluminum Truss uses international standard 6082 material, with the advantages of beautiful appearance,small volume, easy to set up and transport, itself also has the advantages of excellent compressive and anticorrosive performance; the truss average loading can meet many kinds of performances, business conferences audio equipment requirements. Other irregular shapes can be customized according to the customers' requirements.

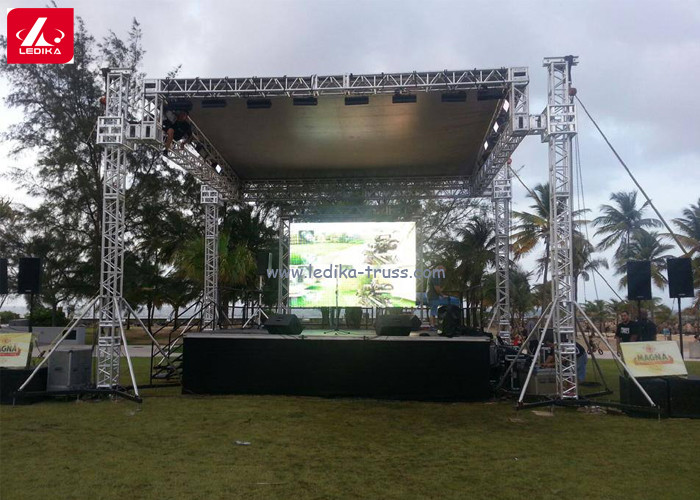

Product Applications
To Large-scale performances, large-scale exhibitions, celebrations, meetings, real estate, car park, government, television activities.We provide all the planning, art production, site decoration, like a one-stop service. We have number of successful planning and implementation of major activities, the opening and closing ceremonies, awards ceremony; important groundbreaking ceremony of the project and the completion of the ceremony, the property market opening, press releases, product promotion and brand communication, the new car market activities.
Product Feature
1. It's light,simple and durable
2. Other irregular shapes can be customized according to the customers' requirements.
3. All kinds of truss can be retread and reused,because it have high corrosion resistance.
4. non-toxic with high technical welder and good quality of alloy aluminum tube.
5. It can help you save expenditure.
Product Specification
| Size of Truss | 290*290mm |
| Diameter of Main Tube | 50mm |
| Thickness of Main Tube | 3mm |
| Diameter of Brace Tube | 20mm |
| Thickness of Brace Tube | 2mm |
| Size of Joint | 50x40mm |
| Connection | Spigot |
| Span | 12m |
| Max Loading | 43KG |
| SQS 290 Allowable Loading | |||||
| 6082-T6 50*3mm tube as main tube 20*2mm as brace tube | |||||
| Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
| m | ( ft ) | kg | kg/m | kg | (mm) |
| 4 | 13.1 | 809.6 | 202.4 | 404.3 | 8 |
| 5 | 16.4 | 808.5 | 161.7 | 404.3 | 16 |
| 6 | 19.7 | 808.5 | 134.8 | 404.3 | 27 |
| 7 | 23 | 808.5 | 115.5 | 404.3 | 43 |
| 8 | 26.2 | 788.5 | 98.6 | 394.2 | 63 |
| 9 | 29.5 | 699.9 | 77.8 | 350.4 | 80 |
| 10 | 32.8 | 631.4 | 63.1 | 315.7 | 99 |
| 11 | 36 | 576 | 52.4 | 288 | 120 |
| 12 | 39.3 | 526.7 | 43.9 | 263.3 | 142 |
Why choose LEDIKA-truss ?
1.20-year's experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.
►Our Products
►Our Projects
FAQ
Q. Does LEDIKA accept OEM/ODM service ?
Yes , you can custom design or selected our design (OEM /ODM is high welcome) , our factory have professional design team and can do as your offered design .
Q: How to get samples from LEDIKA?
a.If you need samples for quality check , sample fees should be charged from buyer .
b.Free sample are available when order confirmed.
c.Most of the sample fees will be returned to you when order confirmed.
Q: What is the delivery time ?
A: 7-15 days for batch goods regular size truss are in stock . Urgent order is also available.
Q: What is your trade terms?
A: Our trade terms are Ex-work , FOB , CNF & CIF
Q: Where is your factory and how can I visit your company ?
A: Ledika is a professional manufacturer in stage equipment, located in Nansha ,Guangzhou ,GuangDong , China . Warmly welcome you come to visit our factory .
Q: What advantage do you have to make me choose LEDIKA stage truss ?
A: We are a true factory & specialized in producing aluminum truss & other performance equipment more than 13 years . Humanist ans innovation are our base to develop, and we offer the best sale service for you.
