Truss Ground Support Tower Sleeve Corner Block Aluminum Square Box

Place of Origin China
Brand Name LEDIKA
Certification TUV/SGS/CE
Model Number SQS-SQS
Minimum Order Quantity 1set
Price negotiation
Packaging Details Carton paper / air bubble
Delivery Time 15 days
Payment Terms T/T 30% deposit, 70% balance
Product Details
Material 6082-T6 Aluminum Alloy Thickness 3mm
Main Tube 50*3mm Color Black/White (optional)
Connection Bolt/ Spigot Size Depends On Size Of Pillar
Shape Square Feature Heavy Load,durable
High Light

Truss Tower Sleeve Corner Block

,

Aluminum Square Tower Sleeve Corner Block

Leave a Message
Product Description





Aluminum Square Box Truss Ground Support Tower Sleeve / Corner Block





Product Description:



Sleeve block as a lifting tool for Beam. Easy to connect.

It can be applied for Bolt truss and Spigot truss with difference size





Usage:



Connection with beam and pillar. It's suitable for handle controler and hoist controler, to make sure the trusses can be easy to up and down. Perfect for attaching to all hoist applications where your truss structure needs to be completely raised or lowered
Includes 12 half couplers to easily attach trusses





Advantage :



1. Sleeve/4 way corner truss block for square aluminum truss,

2. Connection with Beam and Pillar.

3. Includes 12 half couplers to easily attach trusses
4. Rugged, industrial grade aluminum build





Specifications:



Product Name: Square Box Sleeve Block
Material: Aluminum Alloy 6082-T6
Main Tube: Diameter Ø50mm, Thickness 3mm
Size: Depends on the truss
Color: Aluminum or customized
Connection: Spigot or bolt
Weight: 26-65kg
Shape: Square
Feature: Heavy Load,durable

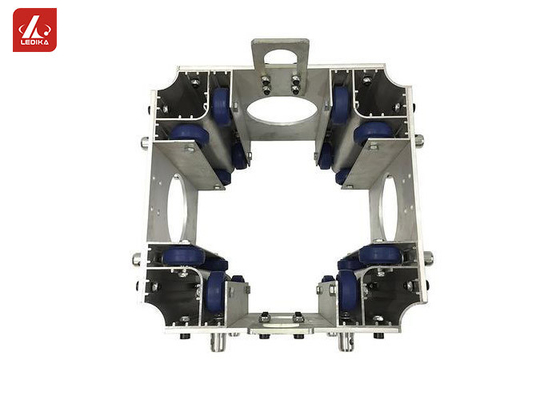

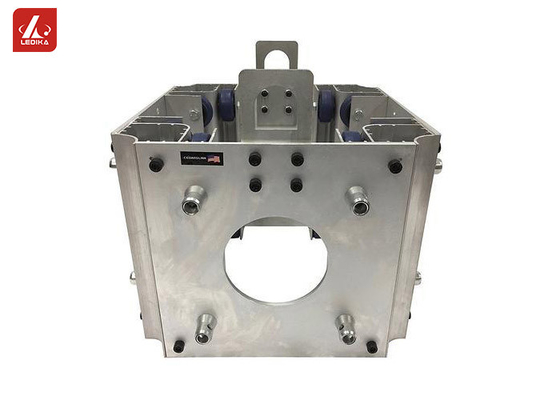

Truss Ground Support Tower Sleeve Corner Block Aluminum Square Box 0Truss Ground Support Tower Sleeve Corner Block Aluminum Square Box 1

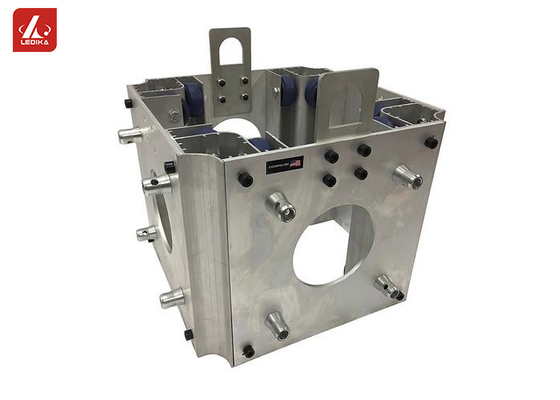

Truss Ground Support Tower Sleeve Corner Block Aluminum Square Box 2
