Easy And Quick Straight Aluminum Square Truss For Exhibition

Place of Origin Guangzhou ,China
Brand Name LEDIKA
Certification ISO9001
Model Number SQB300
Minimum Order Quantity 100Set
Price FOB, EXW
Packaging Details Air bubble film or carton, or Customized
Delivery Time 2-3weeks
Supply Ability 1000Set
Product Details
Color Black,silver Or OEM Material Aluminum Alloy 6082-T6/6061-T6
Product Name Aluminum Alloy Square Truss Application Exhibition,Wedding,Big Event,etc
Shape Triangle,Square,straight Frame Size 300*300mm,400mm More Size
Feature Easy To Carry & Assemble & Take Apart Connection Way Spigot Or Bolt Aluminum Truss
High Light

Straight Aluminum Square Truss

,

Exhibition Aluminum Square Truss

,

Wedding 6061 Aluminum Square Truss

Leave a Message
Product Description

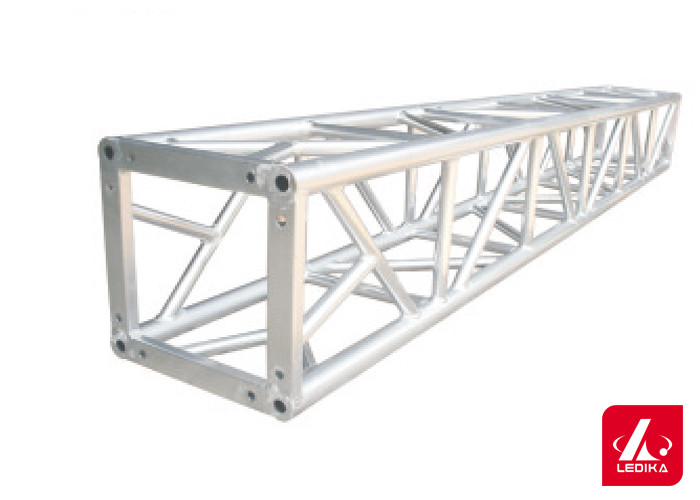

Easy And Quick Straight Square Aluminum Lighting Truss For Speaker And Event





Product parameters

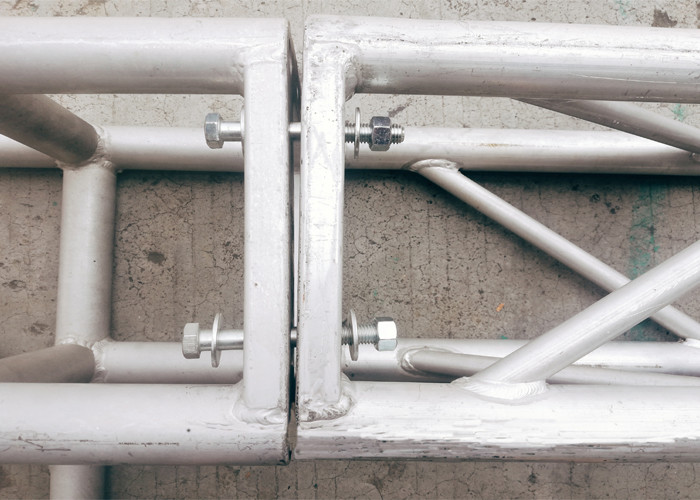

This Trusses used for Sound, Light, Event, Wedding Equipment, Exhibition etc. Aluminium Is a Light Weight Material and Rush Free But Its Load Capacity is Equivalent to iron Material. Aluminium Trusses Made Up of Special Grade Aluminium and Its call Aluminium Alloy so that the material Strength is very High. Aluminium Trusses Fitting Assembly is very easy. We are using Spigot fitting in Aluminium Trusses so that the fitting of This Trusses very Easy and Quick. Because of Spigot Joint the Truss Strength is Equal one Piece of Structure.





Product Features



1. Fine finish

2. Easy to install and remove
3. Superior resistance to corrosion
4. Impeccable dimensional accuracy





Product Name: Aluminum Alloy Square Truss
Application Exhibition,Wedding,Big event,etc
Usage Concert; Events; Exhibition; Wedding; Performance; Show And So On
Truss Material Aluminum Alloy 6061-T6/6082-T6
Truss Type Spigot Truss Or Screw Truss
Light Duty Truss 200*200mm; 220*220mm; 290*290mm; 300*300mm, Customized
Medium Duty Truss 390*390mm; 400*400mm; 450*450mm; 520*520mm; 400*600mm; 500*600mm; Customized
Heavy Duty Truss 520*760mm; 600*760mm; 600*900mm; 670*1010mm; Customized
Truss Shape Ladder Truss; Triangular Truss; Square Truss; Arch Truss; Circle Truss; Folding Truss
Main Tube Thickness φ25*3mm; φ30*3mm; φ38*3mm; φ50*3mm; φ50*4mm; φ60*6mm
Vice Tube Thickness φ20*2mm; φ25*2mm; φ50*2mm; φ50*3mm
Brace Tube Thickness φ16*1.2mm; φ20*2mm; φ25*2mm; φ30*2mm
Length 0.5m; 1m; 1.5m; 2m; 3m; 4m; Customized
Color Aluminum Alloy Own Color; Black; Blue; Red; Yellow; Customized
