TUV Aluminum Spigot Truss Box Truss System Conical Coupler 0.5m - 4m

Place of Origin Guangzhou ,China
Brand Name LEDIKA
Certification ISO9001、TUV
Model Number SQS290
Minimum Order Quantity 1 set
Price FOB,EXW
Packaging Details Air bubble film or carton, or Customized
Delivery Time 2-3 weeks
Payment Terms L/C, T/T
Supply Ability 1000 pcs/per month
Product Details
Material Aluminum 6061/6082-T6 Color Black ,silver Or OEM
Shape Square,Triangle,Straight,Square Circle Arch Triangle Ladder Truss,Layer Size 290*290MM Customized Available
Application Music,Performance,Events,Concert,Events,Exhibition And So On, Main Tube 50*2mm,50*3mm , 50*4mm Etc.
Length 0.5m-4m,available Packing Air Bubble Film Or Carton
Warranty 3 Years Service Online 7x24hours
Brace Tube 20*2mm/25*2mm/30*2mm Connection Way Spigot Or Bolt Aluminum Truss
Feature Heavy Load,Portable/no Rust Keywords Used Aluminum Truss,truss System,Aluminum Stage Truss
High Light

TUV Aluminum Spigot Truss

,

Conical Coupler 0.5m Aluminum Spigot Truss

,

Bolt Aluminum Truss

Leave a Message
Product Description



TUV Aluminum Spigot Truss / Box Truss System Various Conical Coupler 0.5m - 4m





Product Descriptions:

1) Aluminum Box Truss uses international standard 6082-T6 material, with the advantages of beautiful appearance,small volume, easy to set up and transport, itself also has the advantages of excellent compressive and anticorrosive performance; the truss average loading can meet many kinds of performances, business conferences audio equipment requirements. Other irregular shapes can be customized according to the customers' requirements.

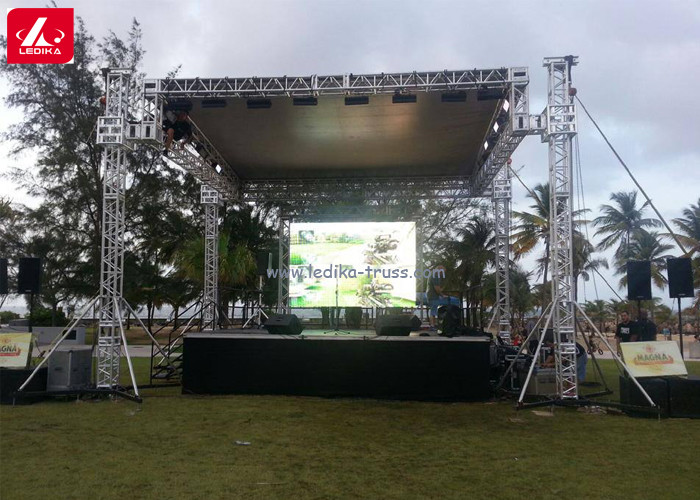

2) This Aluminum Box truss is for those projects with ever increasing load and distance requirements. The truss is plated and connected with spigot or bolts as standard and can be combined with towers and suitable sleeve blocks to create a roof system perimeter or LED screen support structure. This truss can be supplied with casters. The Main Tube is Diameter 50mm, Thickness is 3mm Aluminum tube. It can suit for any type of event, conference, or show.



3) This Aluminum Truss display booth system are constructed of different size of Aluminum box trusses that has a powder coated finish in your choice of Five Standard Colors, (Customized Colors are available). Like all of our truss displays systems, this Aluminum Booth truss display is made of durable, built fast, and high-strength solid tubular steel for supporting LED or plasma screens, graphics, lights and other accessories. The tubular steel construction ensures that your exhibit will be sturdy and solid without sacrificing the portability and look of a modern portable display. The simple Knob and Pin Connection allows a very easy and quick to set up, (Fastest truss Connection available) the sturdy Aluminum truss supports allow for a solid exhibiting system.



SQS 290 Allowable Loading
6082-T6 50*3mm tube as main tube 20*2mm as brace tube
Span LOAD ALL Unitformly distributed load(UDL) Centre point load(CPL) DEFLECTION
m ( ft ) kg kg/m kg (mm)
4 13.1 809.6 202.4 404.3 8
5 16.4 808.5 161.7 404.3 16
6 19.7 808.5 134.8 404.3 27
7 23 808.5 115.5 404.3 43
8 26.2 788.5 98.6 394.2 63
9 29.5 699.9 77.8 350.4 80
10 32.8 631.4 63.1 315.7 99
11 36 576 52.4 288 120
12 39.3 526.7 43.9 263.3 142

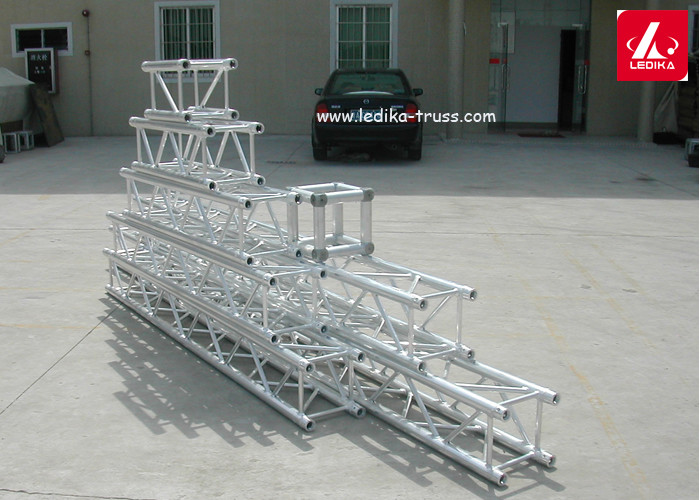

TUV Aluminum Spigot Truss Box Truss System Conical Coupler 0.5m - 4m 0

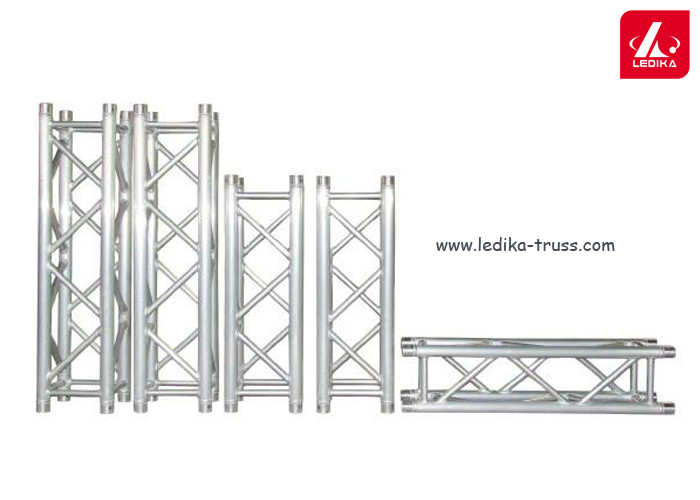

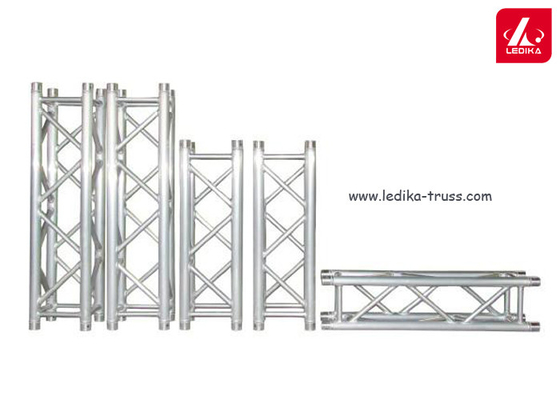

TUV Aluminum Spigot Truss Box Truss System Conical Coupler 0.5m - 4m 1
