387mm Aluminum Spigot Exhibit Truss For Indoor Outdoor Events

Place of Origin Guangzhou ,China
Brand Name LEDIKA
Certification ISO9001
Model Number SQS387
Minimum Order Quantity 1 set
Price FOB,EXW
Packaging Details Air bubble film or carton
Delivery Time 2-3 weeks
Payment Terms L/C, Western Union, MoneyGram, T/T
Supply Ability 1000 pcs/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model No. SQS387 Material Aluminum 6061-T6
Main Tube Diameter 50*3mm Bruce Tube Diameter 20*2mm/25*2mm/30*2mm
Color Black Or Customized,Silver Connection Way Spigot Connector
Application Events ;Exhibition ,Music,Performance,Events,Concert Feature Heavy Load,Portable/no Rust
High Light

387mm Aluminum Spigot Exhibit Truss

,

T6 Heavy Load Exhibit Truss

,

Events Aluminum Spigot Truss

Leave a Message
Product Description

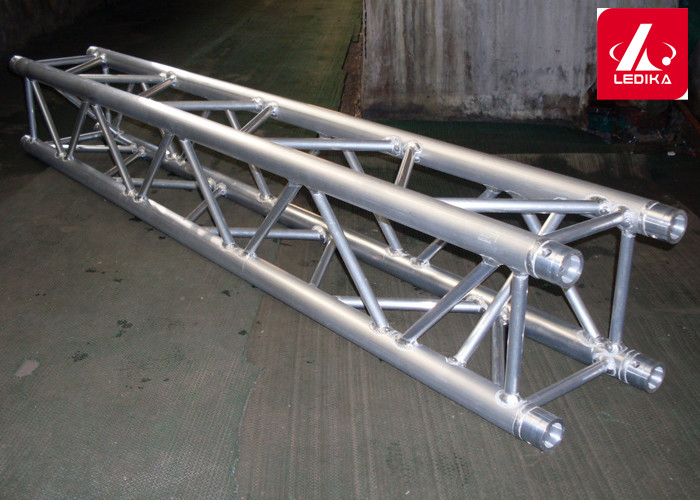

387mm Exhibit Truss Aluminum Spigot Truss For Indoor Or Outdoor Events





SQS Series truss are connected by spigots.It's easy to set by hammer.Nice ,Fast, Easy, Saving time and Saving labor.It's suitable for mobile events,tower of Medium project and ceiling system indoor.Meanwhile ,widely used for exhibition truss .Available size:450*450/400*400/387*387/287*287mm. There are 2 style for SQS series truss,ordinary one with brace and indoor one without brace .They have their respective pictures for reference . Ordinary type's characteristic is that , when SQS is choosed as tower,its brace's design can make you climb aluminum truss conveniently ,comfortably ,safely. So ordinary aluminum truss is generally choosed and used as team or tower. Indoor type's characteristic is that its design has no brace, so when it is choosed and used as tower,it is not smooth and comfortable to climb .So it is not suitable as tower.Its brace is fully adopted "△" type,when it is used as ceiling or beam,you will see other kinds of aluminum trusses can't be comparable with its slinky degree.But all the trusses have sameness:they have brace, two tilted pipes derive from "▽",because each "△"type,structures a triangle,its stability can greatly strengthen aluminum metal safety factor.



Truss section specification
Size of Truss 287*287mm 387*387mm 400*400mm 450*450mm
connection Spigot Spigot Spigot Spigot
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
standpipe Φ20*2mm Φ30*2mm Φ30*2mm Φ30*2mm
Truss Brace tube Diameter Ø 20mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm
Truss Joint Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm
Max Loading 520-800kg 690-930kg 690-930kg 790-1100kg
Max Span 12m 16m 16m 18m
