290mm Stage Lighting Spigot Dj Aluminum Square Truss

Place of Origin Guangzhou , China
Brand Name LEDIKA
Certification CE/SGS/TUV/ISO9001/ROHS
Model Number SQT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Carton with film
Delivery Time 10-15 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 5000M/month
Product Details
Color Black,silver Or OEM Material Aluminum Alloy 6082-T6,6061
Product Name Stage Truss, DJ Truss ,Aluminum Square Truss For Concert Stage,aluminum Stage Decoration Lighting Truss Application Concert,Exhibition,Events,Wedding,DJ Bar,etc
Main Tube 50*3mm Shape Square
Size 290*290mm,400mm More Size Length 0.5-4.0m And Customized
Feature Heavy Load,convenient To Install And Dismounting,easy To Carry & Assemble & Take Apart,Good Welding,Non-rust Brace Tube 25x3mm
Connection Way Spigot Or Bolt Aluminum Truss Packing Air Bubble Film Or Carton
Keywords Truss,290mm Aluminum Truss,400mm Truss Component Square Truss,corner,base
High Light

Dj Aluminum Square Truss

,

Spigot Aluminum Square Truss

,

290mm Aluminum Square Truss

Leave a Message
Product Description

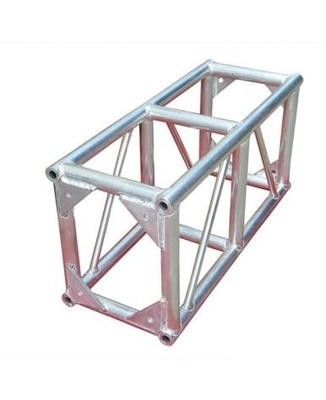

290mm Stage Lighting Spigot Dj Truss Aluminum Square Truss



290mm Stage Lighting Spigot Dj Aluminum Square Truss 0



Truss section specification
Model Number: SQT290 SQT400 SQT-Corner SQT Series-6Z
Size of Truss 290*290mm 400*400mm the same with the Truss the same with the Truss
connection Spigot/Bolt Spigot/Bolt Spigot/Bolt Spigot/Bolt
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm the same with the Truss the same with the Truss
standpipe Φ25*2mm Φ30*2mm the same with the Truss the same with the Truss
Truss Brace tube Diameter Ø 25mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm the same with the Truss the same with the Truss
Truss Joint Diameter Ø 50mm Diameter Ø 50mm the same with the Truss the same with the Truss
Max Loading 520-800kg 690-930kg
Max Span 12m 16m





Product Description





SQT series are the combined design of bolt and spogot truss.Its joints are made by mould die.You could choose either spigots or bolts to connect the truss . Meanwhile,you could mount them both spigots and bolts. Compared SQT and SQS series ,SQT is more perfect to protect its bending, and its less welding trace made it harder than SQB.



290mm Stage Lighting Spigot Dj Aluminum Square Truss 1

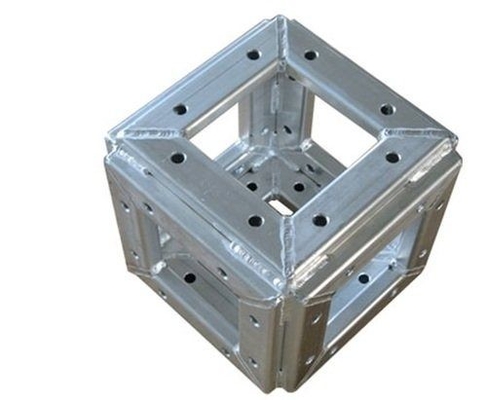

SQT Series -6Z It is the set of accessories for SQT &SQS series.It could take place of each style of 90 degree corner for usage connected by spigot.6Z it is combined with bolts , and could change its fittings for repairing by oneself.Meanwhile,it could be as the corner on ladder truss or single tubes.



290mm Stage Lighting Spigot Dj Aluminum Square Truss 2



290mm Stage Lighting Spigot Dj Aluminum Square Truss 3



290mm Stage Lighting Spigot Dj Aluminum Square Truss 4





Advantage:



1) Flexible : with the advantages of beautiful appearance , small volume and easy to set up , easy to assemble and disassemble
2) Customized Product : spigot or screw as your request, it is convenient for set up and transport
3) High quality Standard :capacity and stability of aluminum truss is strong to lift the speaker and light
4) Good Service : provide 24hours truss and stage hotline service.
5) Wide Usage : concert ,show, exhibition ,shoes fair, big cloth exhibition and any other outdoor show
6) All kinds of truss can retread and reused because of high corrosion resistance, non-rust with high welding and good quality of aluminum tube.





290mm Stage Lighting Spigot Dj Aluminum Square Truss 5



Why choose LEDIKA Truss ?

1. 20-year's experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.



290mm Stage Lighting Spigot Dj Aluminum Square Truss 6



FAQ :


Q. Does LEDIKA accept OEM/ODM service ?
Yes , you can custom design or selected our design (OEM /ODM is high welcome) , our factory have professional design team and can do as your offered design .


Q.How to get samples from LEDIKA?
a.If you need samples for quality check , sample fees should be charged from buyer .
b.Free sample are available when order confirmed.
c.Most of the sample fees will be returned to you when order confirmed.


Q. What is the delivery time ?
7-15 days for batch goods regular size truss are in stock . Urgent order is also available.


Q. What is your trade terms?
Our trade terms are Ex-work , FOB , CNF & CIF



Q. Where is your factory and how can I visit your company ?
Ledika is a professional manufacturer in stage equipment, located in Nansha ,Guangzhou ,GuangDong , China . Warmly welcome you come to visit our factory .


Q. What advantage do you have to make me choose LEDIKA stage truss ?
We are a true factory & specialized in producing aluminum truss & other performance equipment more than 13 years . Humanist ans innovation are our base to develop, and we offer the best sale service for you .
