Spigot Collapsible Aluminum Triangle Truss 520x950 mm Medium Duty

Place of Origin Guangzhou,China
Brand Name LEDIKA
Certification TUV,ISO9001
Model Number SQS/SQB/TR
Minimum Order Quantity 1set
Price USD100-300/M
Packaging Details Carton with film / Flight case / Wooden box
Delivery Time 15-20 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 50,000M per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum 6082-T6 Truss Shape Triangle
Truss Size 520x950mm Connection Spigot
Spigot Tube Diameter Ø 60mm Tube Packing Carton With Film
Loading Port Guangzhou / Shenzhen
High Light

foldable truss

,

dj truss stand

Leave a Message
Product Description

Spigot Collapsible Aluminum Triangle Truss 520x950 mm Medium Duty



Product Description



Folding Truss is the simple addition of two extra lugs on each face of corner and sleeve block.as it uses the same fork end fitting joints and main tube diameter and is the same overall size. The folding truss is a highly versatile and cost effective trussing system. It is a triangular truss and, as its name suggests, folds together to a flat width of 100mm. This saves on storage space and transportation costs making it extremely cost effective. The locking and folding mechanism is very simple and easy to use, with no loose or additional parts to lose or misplace.The truss avilable length is 0.5-4m.





Specification:



  • Type: Spigot
  • Shape: Triangle or Square
  • Color: Silver or customized
  • Certification: TUV,ISO9001
  • Length available: 0.5m—4m
  • Package: Carton





Product's Material


Material 6082 Aluminum
Color Silver, Black, Red, Green or Customized
Standard TUV, ISO9001
Shape Square,Triangle








Comparison



Truss Shape

Connection Type

Specification of Size/mm

Joint

Square

Spigot

600x1200

Ø 60mm Spigot

Triangle

Spigot

520x470

Ø 60mm Spigot

Triangle

Spigot

520x950

Ø 60mm Spigot

Item NO. Truss Size Max Loading Weight Max Span
FT5247 520x470mm 1179-2809kg 20m
FT5295 520x950mm 1055-1898kg 36m
SQS60120 600x1200mm 1100-2800kg 36m




1) FT5247 Aluminum triangle folding truss

    Truss size : 520x470mm

    Material of folded part: A380

    Main tube : Diameter  Ø50mm, Thickness 4mm

    Joint :  Diameter  Ø60mm spigot

    Standpipe : Diameter  Ø30mm, Thickness 2mm

    The largest safety loading : 1179-2809kgs

    Max Span : 20m



2) FT60120 Aluminum square folding truss

    Truss size : 600x1200mm

    Material of folded part: A380

    Main tube : Diameter  Ø50mm, Thickness 4mm

    Joint :  Diameter  Ø60mm spigot

    Standpipe : Diameter  Ø30mm, Thickness 2mm

    The largest safety loading : 1100-2800kgs

    Max Span : 20m




3) FT5295 Aluminum triangle folding truss

    Truss size : 520x950mm

    Material of folded part: A380

    Main tube : Diameter  Ø50mm, Thickness 4mm

    Joint :  Diameter  Ø60mm spigot

    Standpipe : Diameter  Ø30mm, Thickness 2mm

    The largest safety loading : 1055-1898kgs

    Max Span : 36m





Features


• Portable folding truss system designed to enhance any mobile set up at any size venue
• Quick and easy set up and tear down with pre-labeled connections and quick release pins
• Enhances durability and corrosion resistance with aluminum construction
• Holds up to 1000-2800KG (evenly distributed) when fully assembled
• Designed to LEDIKA COMPANY
• Match any setup with selectable height options




Pictures

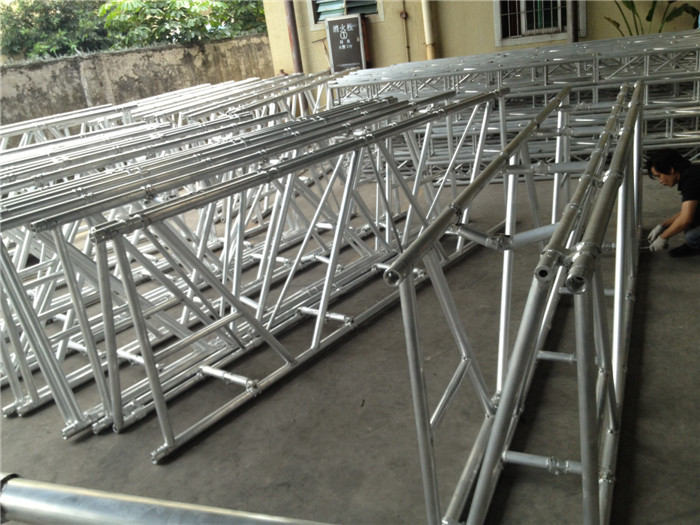

Spigot Collapsible Aluminum Triangle Truss 520x950 mm Medium Duty 0



Spigot Collapsible Aluminum Triangle Truss 520x950 mm Medium Duty 1

Spigot Collapsible Aluminum Triangle Truss 520x950 mm Medium Duty 2


Application



  • Performing Arts Stage Equipment
  • Exhibition Truss Equipment
  • Mechanical Stage Design
  • Entertainment Equipment Rental Services
  • Project Design and Installation




Other Information of Product

  • Warranty: 2 Years
  • Sample: Depends on the quantity of order.
  • Design: Any designs can be customized.



Type of Trading


Payment Terms T/T, L/C, Western Union
Payment 50% TT in davance, the balance should be against before shipment
Delivery 15-20 working days after receive your deposit
Loading Port Guangzhou / Shenzhen
