Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube

Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube

    • Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube
    • Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube
    • Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube
    • Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube
  • Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube

    Product Details:

    Place of Origin: Guangzhou,China
    Brand Name: LEDIKA
    Certification: TUV,ISO9001
    Model Number: SQS/SQB/TR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD100-300/M
    Packaging Details: Carton with film / Flight case / Wooden box
    Delivery Time: 15-20 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 12,000M/ week
    Contact Now
    Detailed Product Description
    Usage: Vocal Concert , Celebration, Show,Modern Fancywork Type: Aluminum And Steel Speaker Truss
    Connection: Screw Or Spigot Available Length: 0.5m, 1m, 2m, 3m, 4m
    Technology: Welding Feature: Waterproof, Fireproof, Anticorrosive
    Loading Port: Guangzhou / Shenzhen Port

    Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube




    Product Description

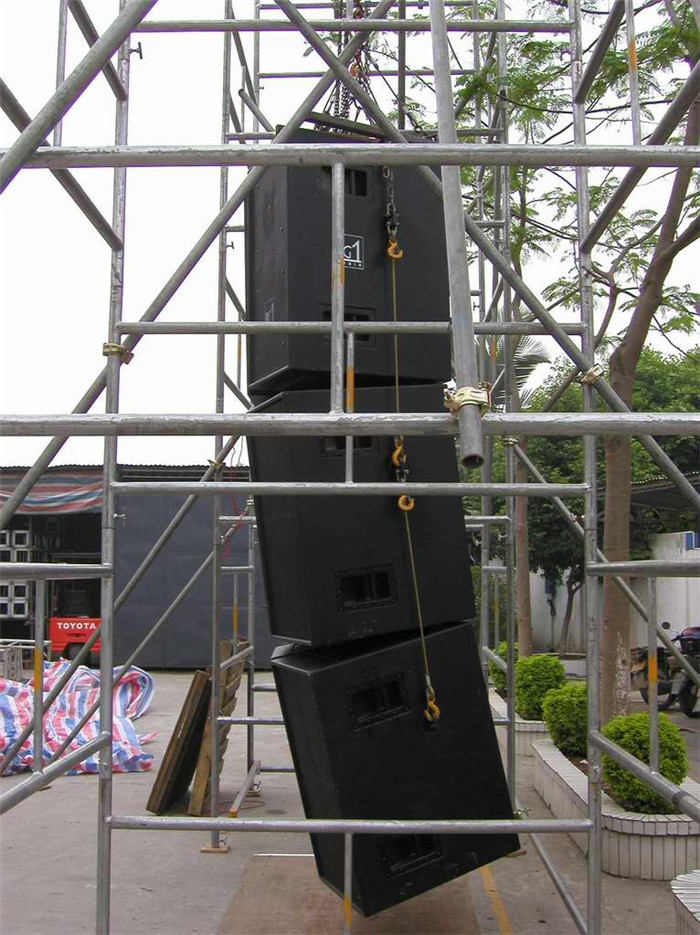

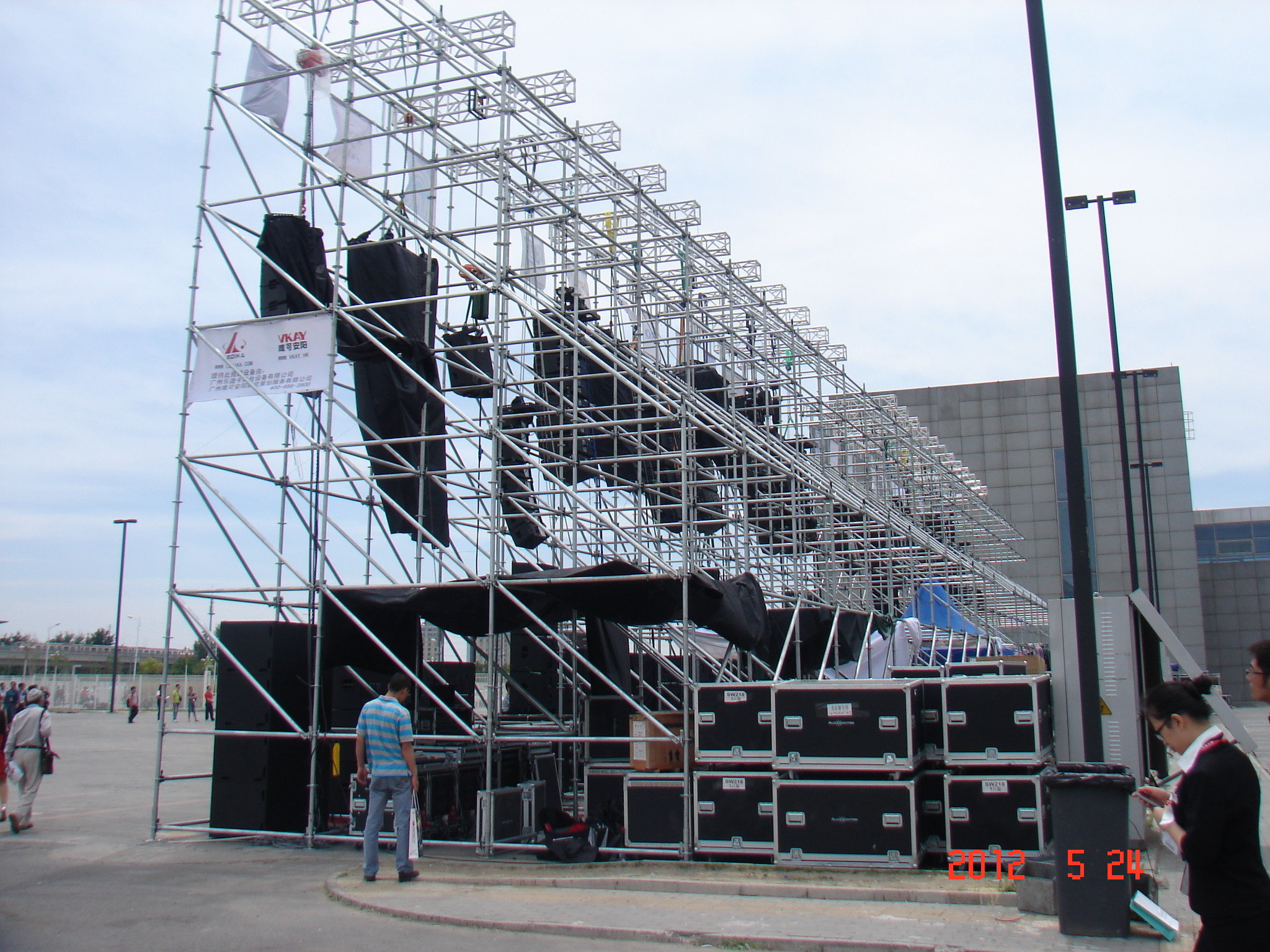

    1)Layer Speaker Truss

    The main material is 48.3mm steel tube. There is 5 parts to assembly different styles and size. They are often use for big events and projects.

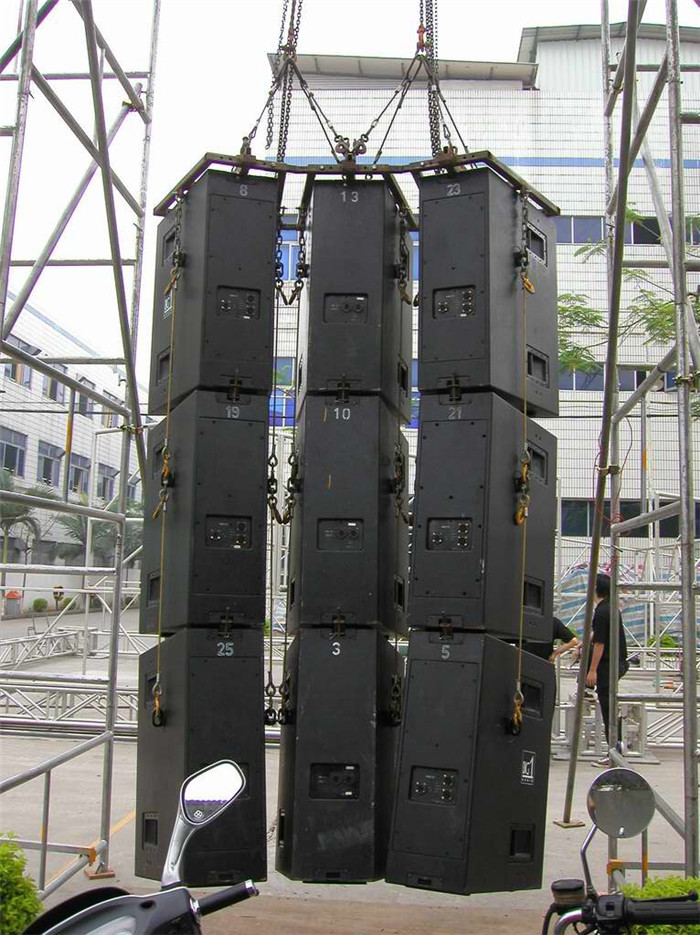

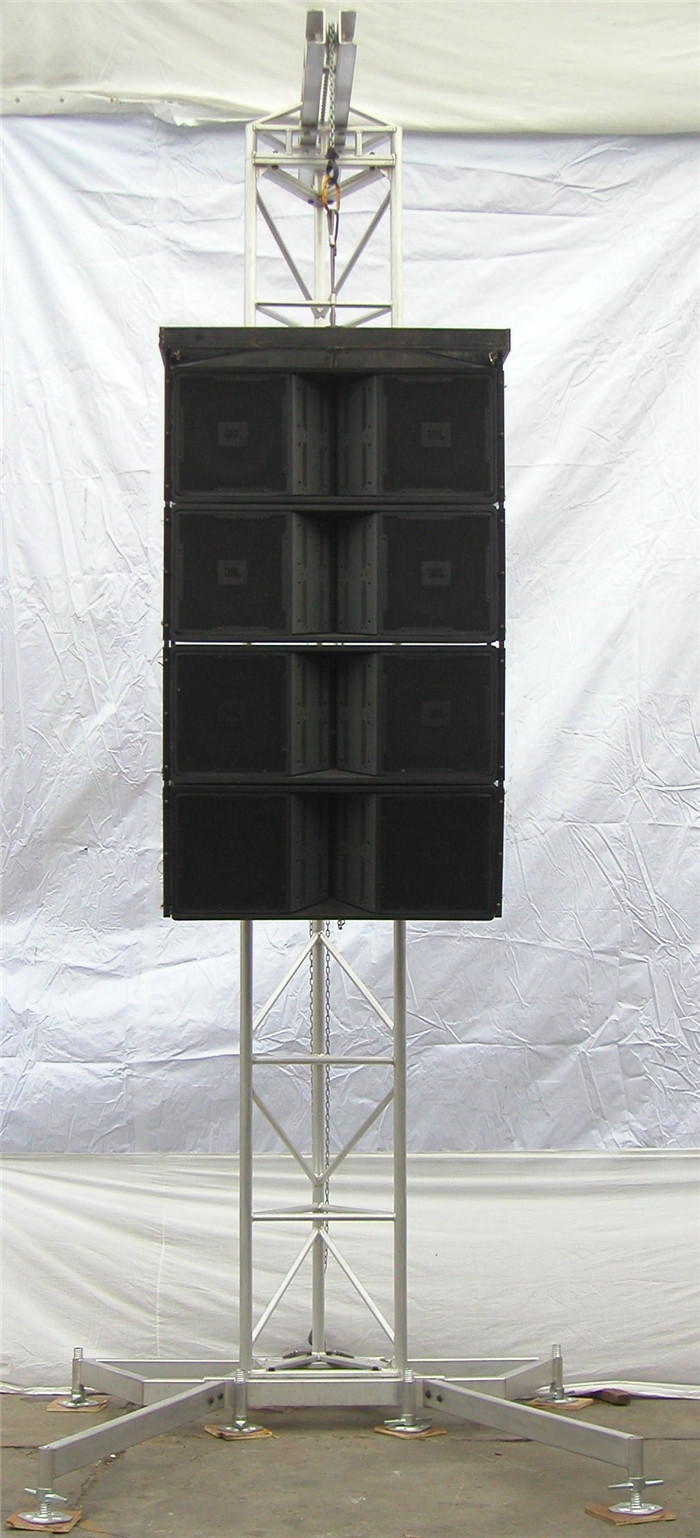

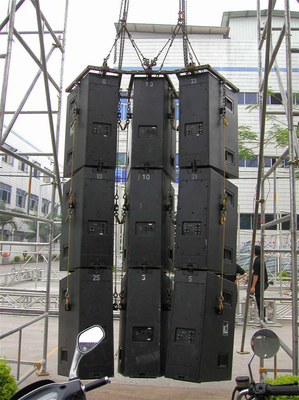

    2)Aluminum / A Speaker Truss

    Its material is aluminum 6082-T6. The main tube of truss is diameter 50mm, thickness 3mm. Mainly used for flying line array speaker, the highest height is 6-18m, Loading weight is 500-1000kg. Its advantage is only use some accesseries to connect normal specification truss together.The size of truss are the following : 287x287mm,290x290mm,300x300mm,387x387mm,400x400mm,450x450mm,520x1000mm,520x760mm,600x760mm,450x600mm





    Aluminum Truss Information



    Truss Material

    Aluminum 6082 16degrees hardness

    Light Series

    287x287mm,290x290mm,300x300mm

    Medium Series 450x450mm,400x400mm,387x387mm
    Heavy Series 520x1000mm,520x760mm,600x760mm,450x600mm

    Truss main tube

    Ø 50mm , Thickness 3mm

    Truss sub-tube

    Ø 50mm , Thickness 2mm

    Truss brace tube

    20*2mm,25*2mm,30*2mm,30*3mm

    Length available

    0.5m-4m(Normal length ) or customized

    Max Span 12-30m

    Max loading

    500-4700kg

    Applications

    Concert, Outdoor and indoor performance and shows,

    Exhibitions,etc





    Technical information

    • Custom lengths available upon request
    • Equipped with steel spigots/ bolts
    • Fabricated by AWS / SFL certified welders





    Production Process


    Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube





    About US



    Fireproof Aluminum Speakers Stand Truss Head Screw TUV CE Ø 50mm Tube



    Applications:


    Those Speaker truss is for the projects with ever increasing load and distance requirements.This Aluminum Truss display booth system are constructed of different size of  Aluminum box trusses that has a powder coated finish in your choice of Five Standard Colors, (Custom Colors are available).The tubular steel construction ensures that your exhibit will be sturdy and solid without sacrificing the portability and look of a modern portable display. The simple Knob and Pin Connection allows a very easy, quick set up, (Fastest truss Connection available) the sturdy Aluminum truss supports allow for a solid exhibiting system.They will suit for the Heavy, Medium , Small Events or Shows.




    Advantage

    1. Above is our normal size and description,we offer OEM service,truss size can be customize.
    2. The truss is made of aluminum 6082 with high hardness.
    3. The truss have different shape: ladder,triangle,square,arch,circle or available on your request.



    Other Information of Product

    • Warranty: 2 Years
    • Sample: Depends on the quantity of order.
    • Design: Any designs can be customized.



    Type of Trading


    Payment Terms T/T, L/C, Western Union
    Payment

    50% TT in davance, the balance should be against before

    shipment

    Delivery 15-20 working days after receive your deposit
    Loading Port Guangzhou / Shenzhen





    Our Services



        1. We will provide the free service on 24 hours.



        2. We have a complete QC system,and regulary the quality on 24 hours.



        3. We have a specialized foreign trade team,and can provide the  professional service.



        4.We have several sets of production equipments,can meet the your delivery time in time.



        5.We are factory ,and can provide the cheap price for you.
