6082 Aluminum Lighting Dj Truss System Square Box Bolt Truss
Place of Origin | Guangzhou ,China |
---|---|
Brand Name | LEDIKA |
Certification | ISO9001 |
Model Number | SQS287/387 |
Minimum Order Quantity | 1 set |
Price | FOB,EXW |
Packaging Details | Air bubble film or carton, or Customized |
Delivery Time | 2-3 weeks |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 1000 pcs/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel No. | TRS287/387 | Material | 6082-T6/6061-T6 |
---|---|---|---|

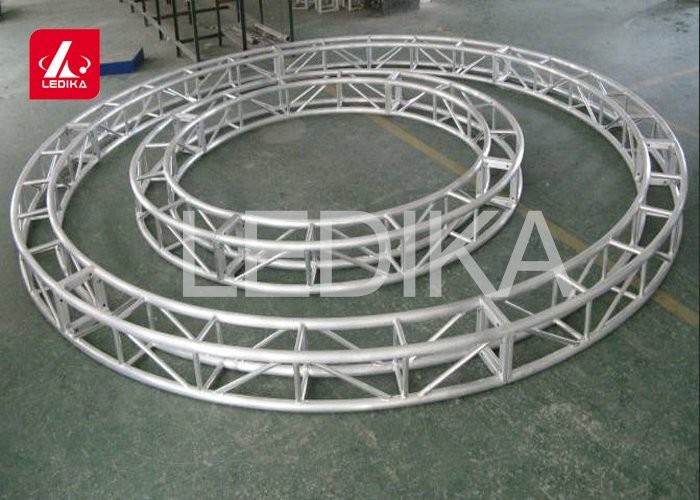

Shape | Circle | Diameter | 1-15m ,Customized |
Main Tube | 50*3mm; 50*2mm | Vice Tube | 30*2mm; 25*2mm ;20*2mm... |
High Light | Aluminum Lighting Dj Truss System,6082 Dj Truss System,Bolt Dj Truss System |
Aluminum Lighting Dj Truss System Aluminum Square Box Bolt Truss
Advantage
1. High-grade and lightweight aluminum material, it's easy for transportation and setup.
2. It is customized in various lengths for productions, nightclubs and retail stores.
3. Durable and widely used in various fields.
Applications:
1.Celebration services: opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon cutting, the launching ceremony, the unveiling ceremony, the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,, public relations etiquette; promotion of new products, awards ceremony;
2.Business services: press conferences, new product launches, the various types conferences such as for investment,order, awards, the annual meeting, customer appreciation, sightseeing exchanges
3.Performances service: Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic features performances, Chinese and foreign star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.
Material | Aluminum 6082/T6 | |||||
Length available | 1m,2m,3m,4m. | |||||
Shape | Ladder,Triangle,Square,Circle Truss | |||||
Color | Silvery and Black or Customized | |||||
Certification | TUV | |||||
Features | Spigot connect | |||||
Application | Truss system:Used for concert, exhibition, fashion show, auto show, school performance and so on. | |||||
LED truss to hang light, LED, speaker, audio |
SQS290 Allowable Loading | |||||
6082-T6 50*3mm tube as main tube 20*2mm as brace tube | |||||
Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
m | ( ft ) | kg | kg/m | kg | (mm) |
4 | 13.1 | 809.6 | 202.4 | 404.3 | 8 |
5 | 16.4 | 808.5 | 161.7 | 404.3 | 16 |
6 | 19.7 | 808.5 | 134.8 | 404.3 | 27 |
7 | 23 | 808.5 | 115.5 | 404.3 | 43 |
8 | 26.2 | 788.5 | 98.6 | 394.2 | 63 |
9 | 29.5 | 699.9 | 77.8 | 350.4 | 80 |
10 | 32.8 | 631.4 | 63.1 | 315.7 | 99 |
11 | 36 | 576 | 52.4 | 288 | 120 |
12 | 39.3 | 526.7 | 43.9 | 263.3 | 142 |
Why choose LEDIKA Truss ?
1. 17-year's experience in truss and stage industry.
2. Customers from more than 150 countries.
3. We are manufacture, can give you the lowest price.
4. Professional engineers offer technical support to customers.
5. 24hours online services from our professional foreign trade department.
6. All our raw material is from public company.
7. Our complete QC system can make sure every product with high quality.
Choosing LEDIKA Truss, you will get not only the products, but also the better service, and better operating mode.
►Our Products
►Our Projects
FAQ :
Q: Does LEDIKA accept LOGO service ?
A: Yes , our factory have professional design team and can do as your offered design.
Q.How to get samples from LEDIKA?
a.If you need samples for quality check , sample fees should be charged from buyer .
b.Free sample are available when order confirmed.
c.Most of the sample fees will be returned to you when order confirmed.
Q: What is the delivery time ?
A: 7-15 days for batch goods regular size truss are in stock . Urgent order is also available.
Q: What is your trade terms?
A: Our trade terms are Ex-work , FOB , CIF
Q: Where is your factory and how can I visit your company ?
A : Ledika is a professional manufacturer in stage equipment, located in Nansha ,Guangzhou ,GuangDong , China . Warmly welcome you come to visit our factory.
Q: What advantage do you have to make me choose LEDIKA stage truss ?
A : We are a true factory & specialized in producing aluminum truss & other performance equipment more than 13 years . Humanist ans innovation are our base to develop, and we offer the best sale service for you .
