6061 Aluminum Spigot Truss Conical Coupler 0.5m - 4m Box Truss System

6061 Aluminum Spigot Truss Conical Coupler 0.5m - 4m Box Truss System

  • 6061 Aluminum Spigot Truss Conical Coupler 0.5m - 4m Box Truss System
6061 Aluminum Spigot Truss Conical Coupler 0.5m - 4m Box Truss System
Product Details:
Place of Origin: Guangzhou ,China
Brand Name: LEDIKA
Certification: ISO9001
Model Number: SQS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB,EXW
Packaging Details: Air bubble film or carton, or Customized
Delivery Time: 2-3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/per month
Contact Now
Detailed Product Description
Color: Black,Silvery Or Customer Request Material: Aluminum Alloy 6082-T6/6061-T6
Product Name: Stage Truss,Aluminum Square Box Roof Truss For Concert Stage,Top Quality Aluminum Light Weight Black Squre/Box Truss,Binocular Square Truss,aluminum Stage Decoration Lighting Truss Application: Concert,Exhibition,Events,Wedding,etc
Main Tube: 50*2mm /50*3mm/ 50*3mm + Shape: Triangle,Square,Circle,straight Frame
Size: 287*287mm; ,290*290mm ; 300*300mm, 387*387mm ; 390*390mm; 400*400mm ;400*600mm; Customized Available Length: 0.5-4.0m And Customized
Feature: Heavy Load,convenient To Install And Dismounting,easy To Carry & Assemble & Take Apart,Good Welding,Non-rust Brace Tube: 20*2mm,25*2mm,30*2mm
Connection Way: Spigot Or Bolt Aluminum Truss Packing: Air Bubble Film Or Carton
High Light:

6061 Aluminum Spigot Truss

,

Conical Coupler Aluminum Spigot Truss

,

4m Box Truss System


TUV Aluminum Spigot Truss / Box Truss System Various Conical Coupler 0.5m - 4m





Product Description


Aluminum Box Truss uses international standard 6082 material, with the advantages of beautiful appearance,small volume, easy to set up and transport, itself also has the advantages of excellent compressive and anticorrosive performance; the truss average loading can meet many kinds of performances, business conferences audio equipment requirements. Other irregular shapes can be customized according to the customers' requirements.

Product's Material

  • Material : 6082 Aluminum
  • Color : Silver, Black, Red, Green or Customized
  • Standard: TUV ,SGS, ISO9001
  • Truss Shape: Square, Oblong, Triangle



Truss section specification(L*W): mm= millimeter



(1) Light Series
Size of Truss 287x287mm 290x290mm 300x300mm 305x305mm
Connection Spigot Bolt/Spigot Bolt Bolt
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
Truss sub-tube / Diameter Ø 20mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm
Truss brace tube Diameter Ø 20mm , Thickness 2mm Diameter Ø 20mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm
Truss Joint Diameter Ø 50mm Mould die 50x25mm 100x10mm
Max Loading 520-800kg 720-1200kg 600-1100kg 640-920kg
Max Span 12m 12m 12m 12.2m





(2) Medium Series
Size of Truss 450x450mm 410x410mm 400x400mm 387x387mm
Connection Spigot/Bolt Bolt Bolt/Spigot Bolt
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
Truss sub-tube Diameter Ø 50mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm /
Truss brace tube Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm
Truss Joint 50x40mm 100x10mm 50x25mm Ø 50mm
Max Loading 790-1100kg 600-900kg 600-1100kg 690-930kg
Max Span 18m 12.2m 16m 16m





(3) Medium Series
Size of Truss 450x600mm 520x760mm 600x760mm 520x1000mm
Connection Spigot/Bolt Spigot/Bolt Spigot/Bolt Spigot
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
Truss sub-tube Diameter Ø 50mm , Thickness 2mm Diameter Ø 50mm , Thickness 2mm Diameter Ø 50mm , Thickness 2mm Diameter Ø 50mm , Thickness 2mm
Truss brace tube Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm
Truss Joint 50x40mm Ø50/60mm,50x40mm Ø50/60mm,50x40mm 50x40mm
Max Loading 630-3400kg 840-4100kg 840-4100kg 780-4700kg
Max Span 22m 24m 24m 30m

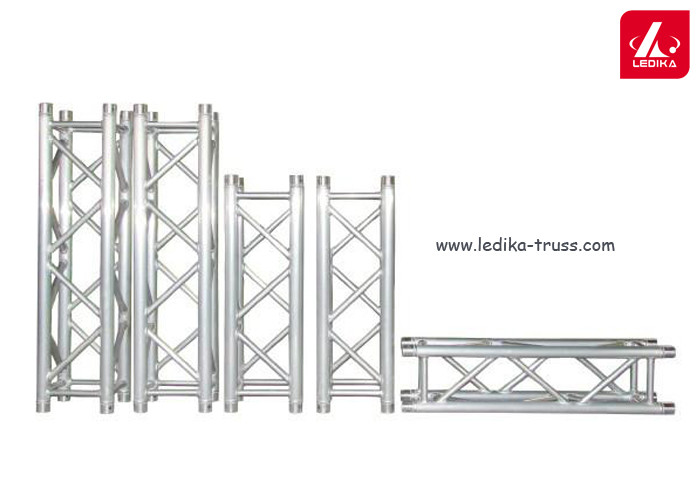

6061 Aluminum Spigot Truss Conical Coupler 0.5m - 4m Box Truss System 0

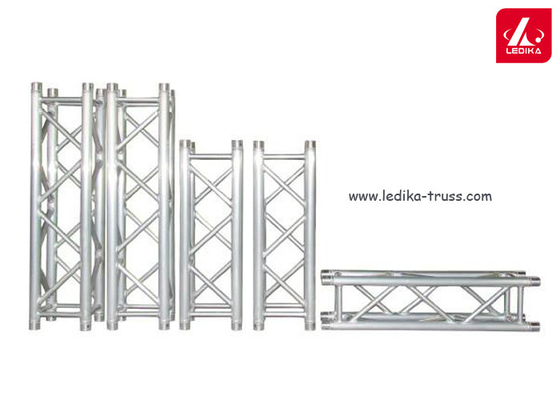

6061 Aluminum Spigot Truss Conical Coupler 0.5m - 4m Box Truss System 1



6061 Aluminum Spigot Truss Conical Coupler 0.5m - 4m Box Truss System 2
