Quick Lock Aluminum Spigot Truss Brightsome Black Truss System

  • Quick Lock Aluminum Spigot Truss Brightsome Black Truss System
  • Quick Lock Aluminum Spigot Truss Brightsome Black Truss System
Place of Origin Guangzhou ,China
Brand Name LEDIKA
Certification ISO9001
Model Number SQS287
Minimum Order Quantity 1 set
Price FOB，EXW
Packaging Details Air bubble film or carton, or Customized
Delivery Time 2-3 weeks
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 pcs/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model No. SQS287 Material Aluminum Alloy 6082/6061-T6
Connection Way Spigot Connection Span 12m
Application Concert,Exhibition,Performance,Fair,Stadium Feature Non-rust,fireproof,Hardwearing,recycle,easy Set-up
Highlight

Quick Lock Aluminum Spigot Truss

,

Brightsome Aluminum Spigot Truss

,

12m Span Aluminum Spigot Truss
Leave a Message
Product Description

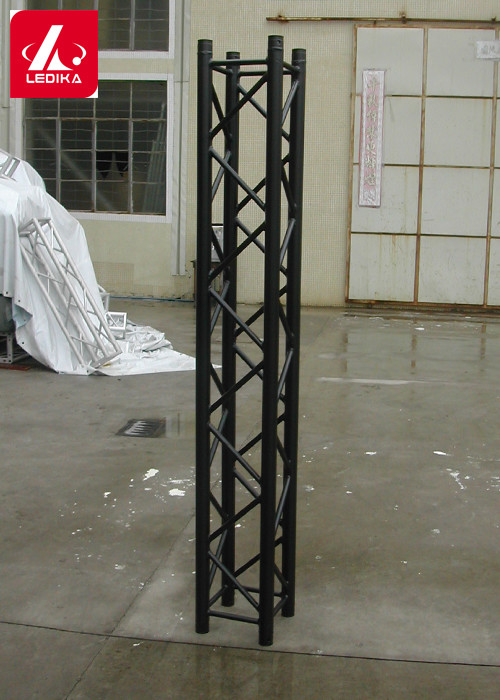

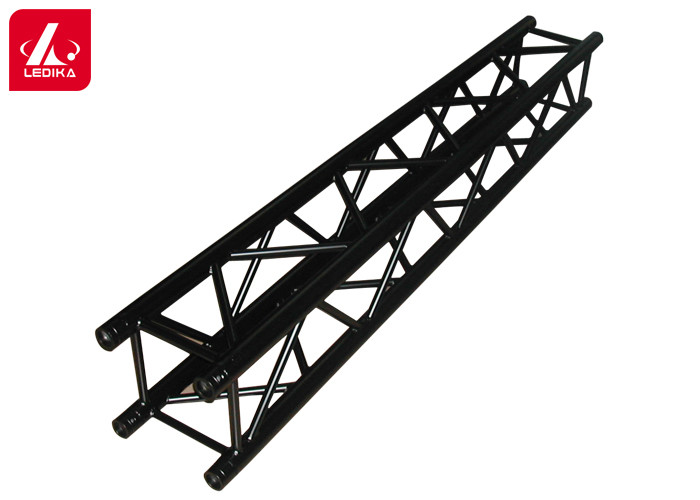

Quick Lock Aluminum Spigot Truss Brightsome Black Truss System



You can spray the truss in any color you want according to your needs,such as black ,red ,green....



Truss section specification
Size of Truss 287*287mm 387*387mm 400*400mm 450*450mm
connection Spigot Spigot Spigot Spigot
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
standpipe Φ20*2mm Φ30*2mm Φ30*2mm Φ30*2mm
Truss Brace tube Diameter Ø 20mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm
Truss Joint Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm
Max Loading 520-800kg 690-930kg 690-930kg 790-1100kg
Max Span 12m 16m 16m 18m
