300 X 300Mm Triangle Aluminum Global Stage Lighting Truss

300 X 300Mm Triangle Aluminum Global Stage Lighting Truss

  • 300 X 300Mm Triangle Aluminum Global Stage Lighting Truss
  • 300 X 300Mm Triangle Aluminum Global Stage Lighting Truss
300 X 300Mm Triangle Aluminum Global Stage Lighting Truss
Product Details:
Place of Origin: Guangzhou ,China
Brand Name: LEDIKA
Model Number: TRB30/TRB40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB,EXW
Packaging Details: Bubble film or carton
Delivery Time: 2-3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/per month
Contact Now
Detailed Product Description

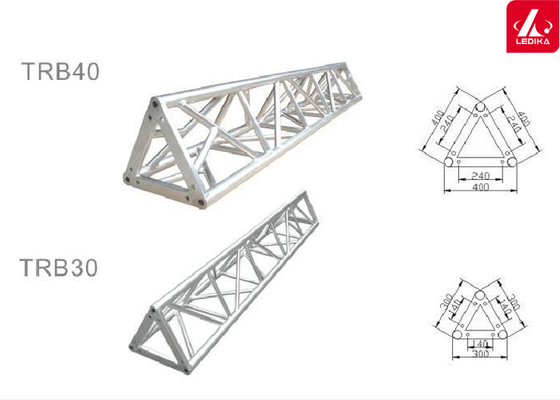

Truss Model: TRB30/TRB40 Material: Aluminum Alloy 6082-T6/6061-T6
Color: Silver,black Or As Your Requirements Application: Concert,Exhibition,Performance,DJ Band,Event,Fashion Show,etc
Main Tube: 50*3mm Size: 300mm*300mm;400mm*400mm; Customized Available
Brace Tube: 30*2mm,25*2mm,20*2mm,as Your Budget Connection Way: Screw Connector
Feature Of Truss: Light Weight,Durable,convenient To Install And Dismounting,Stable And High Quality Our Advantage: Easy To Installation,Factory,save Labor Cost,competitive Price
Packing: Bubble Film /carton Loading: 500-1500kg According To Size
High Light:

Triangle Aluminum Stage Lighting Truss

,

300 X 300Mm Stage Lighting Truss

,

1500kg Loading Stage Lighting Truss



Lighting Truss Stage 300 x 300 mm Triangle Aluminum Global Truss

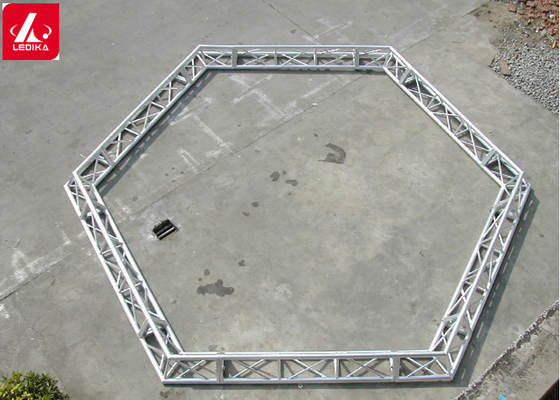

In the action of project building , our designers will connect circlar truss or curved truss with other trusses, so that make different diameters or degrees. For example , "S"truss ,180 degree truss etc.



TRB30 , Material:6061-T6 , Main Tube : 50*3mm , Brace Tube:25*2mm
Span Load All Load/M Middle point 2 point 3 point 4 point Deflection
( M ) ( ft ) ( KG ) ( KG ) ( KG ) ( KG ) ( KG ) ( KG ) ( mm )
4 13.1 781.4 195.4 390.7 293 195.4 162.6 5
5 16.4 624.8 125 312.4 234.3 156.2 130 13
6 19.7 522.7 87.1 261.4 196 130.7 108.8 22
7 23 443.5 63.4 221.8 166.3 110.9 92.2 33
8 26.2 387.2 48.4 193.6 145.2 96.8 80.5 45
9 29.5 340.6 37.8 170.7 128 85.4 71.1 59
10 32.8 308 30.8 154 115.5 77 64 75
11 36 280.7 25.5 140.8 105.6 70.4 58.6 92
12 39 253.4 21.1 126.7 95 63.4 52.7 110



300 X 300Mm Triangle Aluminum Global Stage Lighting Truss 0



300 X 300Mm Triangle Aluminum Global Stage Lighting Truss 1
