287mm Spigot Aluminum Truss System For Exhibition Concert

287mm Spigot Aluminum Truss System For Exhibition Concert

  • 287mm Spigot Aluminum Truss System For Exhibition Concert
  • 287mm Spigot Aluminum Truss System For Exhibition Concert
287mm Spigot Aluminum Truss System For Exhibition Concert
Product Details:
Place of Origin: Guangzhou ,China
Brand Name: LEDIKA
Model Number: SQS287
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB,EXW
Packaging Details: Air bubble film or carton
Delivery Time: 2-3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/per month
Contact Now
Detailed Product Description
Model No.: SQS287 Material: Aluminum 6061/6082-T6
Color: Silver Or OEM Shape: Square,Triangle,Straight,Circle,Star
Size: 287*287mm Customized Available Application: Music,Performance,Events,Concert,Exhibition
Main Tube: 50*3mm Length: 0.5m-4m,available
Packing: Air Bubble Film Or Carton Brace Tube: 20*2mm/25*2mm/30*2mm,Customized Available
Connection Way: Spigot Connector Feature: Heavy Load,Portable/no Rust
High Light:

287mm Aluminum Truss System

,

Exhibition Spigot Aluminum Truss System

,

Performance Aluminum Spigot Truss



287mm Aluminum Spigot Truss Frame for Exhibition & Concert



SQS Series truss are connected by spigots.It's easy to set by hammer.Nice ,Fast, Easy, Saving time and Saving labor.It's suitable for mobile events,tower of Medium project and ceiling system indoor.Meanwhile ,widely used for exhibition truss .Available size:450*450/400*400/387*387/287*287mm. There are 2 style for SQS series truss,ordinary one with brace and indoor one without brace .They have their respective pictures for reference . Ordinary type's characteristic is that , when SQS is choosed as tower,its brace's design can make you climb aluminum truss conveniently ,comfortably ,safely. So ordinary aluminum truss is generally choosed and used as team or tower. Indoor type's characteristic is that its design has no brace, so when it is choosed and used as tower,it is not smooth and comfortable to climb .So it is not suitable as tower.Its brace is fully adopted "△" type,when it is used as ceiling or beam,you will see other kinds of aluminum trusses can't be comparable with its slinky degree.But all the trusses have sameness:they have brace, two tilted pipes derive from "▽",because each "△"type,structures a triangle,its stability can greatly strengthen aluminum metal safety factor.





Truss section specification
Size of Truss 287*287mm 387*387mm 400*400mm 450*450mm
connection Spigot Spigot Spigot Spigot
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
standpipe Φ20*2mm Φ30*2mm Φ30*2mm Φ30*2mm
Truss Brace tube Diameter Ø 20mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm
Truss Joint Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm
Max Loading 520-800kg 690-930kg 690-930kg 790-1100kg
Max Span 12m 16m 16m 18m

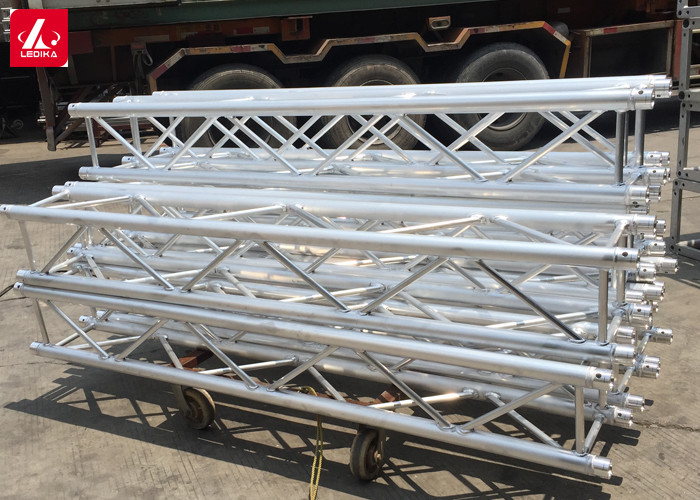

287mm Spigot Aluminum Truss System For Exhibition Concert 0

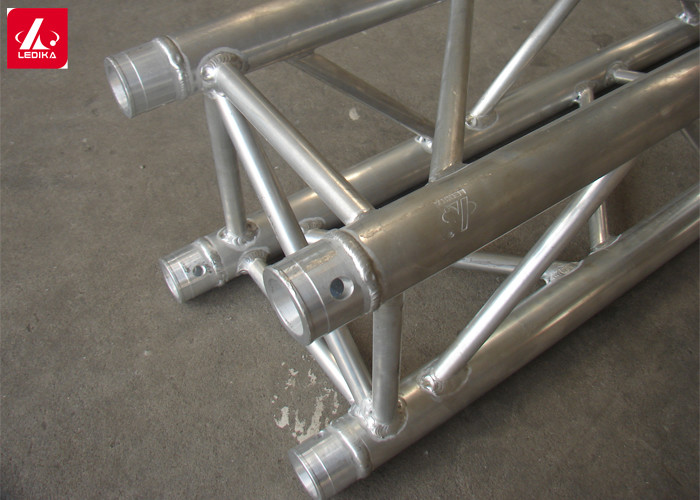

287mm Spigot Aluminum Truss System For Exhibition Concert 1

287mm Spigot Aluminum Truss System For Exhibition Concert 2
