Spigot 6082-T6 Aluminium Stage Truss System Roof Lighting
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Truss No. | SQS5276 | Material | Aluminum 6082-T6/6061-T6 |
|---|---|---|---|
| Color | Black, Silver，or Customized | Truss Size | 520*760mm |
| Truss Length | 1m;2m;3m;4m... | Truss Type | Spigot |
| Usage | Concert, New Product Release, Fashion Show, Booth Stand Construction | ||
| High Light | Roof Lighting Aluminium Stage Truss,6082 Aluminium Stage Truss,Spigot Aluminium Stage Truss |
||
Product Description
6082-T6 Roof Lighting Aluminium Stage Truss System for Sale Spigot Truss
Brief introduction
520x760 mm is kind of heavy duty truss segment for medium and big events. It usually combined with 400x400mm box truss as pillars to construct the heavy duty roof or box truss system.

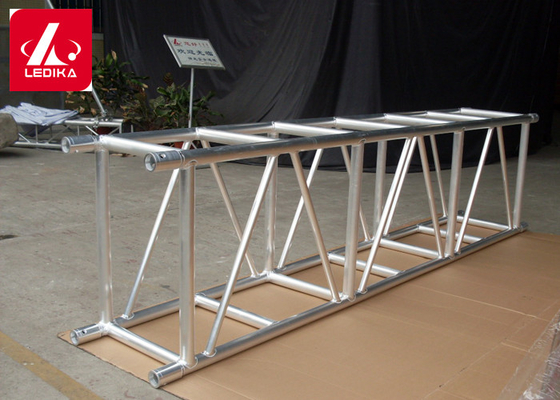

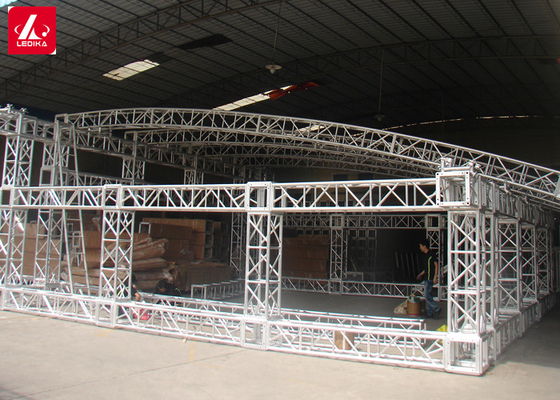

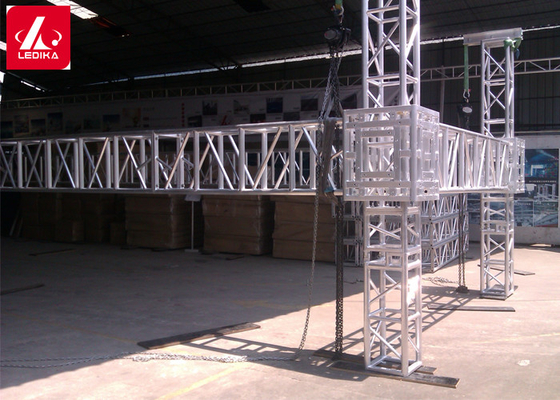

About the520x760x1000mm aluminum spigot truss segment
The 520 mm X 760 mm aluminum spigot truss is constructed with conical coupler connection and supply with the light-duty or medium duty truss as pillars to support the roof and box truss system.
Technical specification table
| Item | 520x760mm aluminum spigot truss | |
| Material | Aluminum 6061/6082 | |
| Main tube | 50x3mm / 4mm | |
| Vice tube | 50x3mm | |
| Diagonals | 25x2mm | |
| Connection | Conical coupler | |
| Size | 520x760x1000mm | |
Remarks:
| If you need to hang heavy speakers and lights or other stuff or in order to keep safe from strong wind, stronger supports tubes, you can also add bars to the middle of the trusses. |
Loading capacity table
| Span | 6m | 8m | 10m | 12m | 14m | 16m | 18m | 20m | 24m |
| UDL( kg/m) | 490.0 | 345.0 | 261.5 | 198.5 | 131.6 | 89.0 | 61.0 | 61.0 | 39.0 |
| Deflection(mm) | 22.0 | 38.0 | 29.0 | 24.0 | 31.0 | 37.0 | 33.0 | 61.0 | 79.0 |
| CPL(kg) | 850.0 | 800.0 | 750.0 | 700.0 | 650.0 | 600.0 | 550.0 | 500.0 | 400.0 |
| Deflection (mm) | 21.0 | 27.0 | 38.0 | 53.0 | 64.0 | 82.0 | 102.0 | 121.0 | 148.0 |
- Loading figures only valid for static loads and spans with two supporting points
- Spans must be supported at each end
- If dynamic loads or wind loads are involved, or more supporting points are applied, contact a structural engineer or ITSC truss
- Loading figures are based on German DIN standards
- The self-weight of the trusses has already been taken into account
- For spans longer than indicated and with a different loading set-up use kilo program
- Loading tables triangle trusses only valid for apex-up or apex-down
Standard length
1m / 2m / 3m/ 4m/ (Other length custom-made)
Advantages
Compact, strength, versatility, low unit weight and easy to assembly with the box corner system, quick to install.

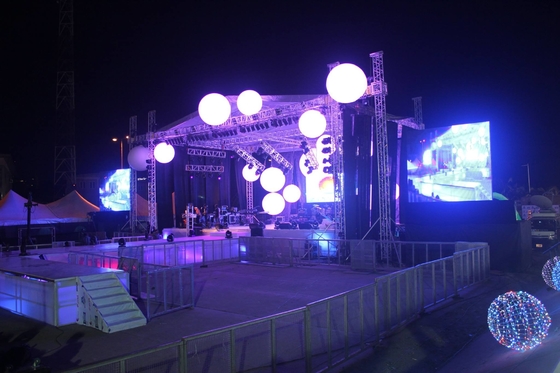

What can we do with this aluminum spigot truss?
| Configuring medium and heavy duty roof truss system | Road shows, outdoor events, Parties, Weddings, Gymnasium |
| Within 24m span box truss system beams | hanging many stage lighting and Array line speakers in concerts / shows, LED screen display truss system |
| More than Dia12m circular truss | Special circular shape for events, or decoration |
| Heavy duty speaker goalpost truss system | Hanging line array speakers |
| Big concert heavy duty ceiling truss system | Hanging lighting in concerts |
Options
- According to the loading capacity, it includes the light duty truss series whose sizes are of 230mm *230mm, 290mm*290mm, 390mm*390mm; The medium duty truss series are of 400mm*400mm, 500mm*500mm, 520mm*520mm, 500mm*600mm; The heavy duty truss series are of 670mm*670mm, 520mm*760mm,and 1100mm*600mm.
- Normally the spigot truss length is 0.5-3M for each piece, the main tube is ¢ 50*3mm, the diagonals tube is 25*2mm, But if the square truss is 520*520mm, you can chose the main tube of 50*4mm with the diagonals of 30*2mm.
- A variety kinds of truss series in our company is available according to the shape of the products, there are linear truss (Step truss), Triangle truss (Trio truss), Square truss (quatro truss) and Arc truss. Our aluminum truss thickness includes 4mm, 3mm, 2mm, 1.6 mm. All above are our normal sizes, and other sizes are available on request
Size Details:
Connection Way:
